Window System AWS 114.SI

Versatile façade window with maximum thermal installation and simple installation

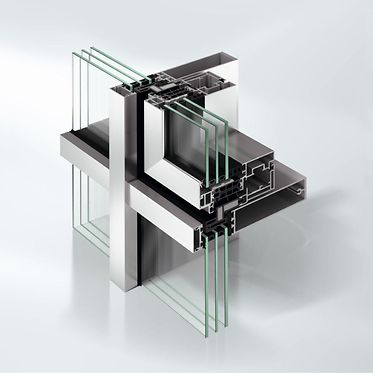

The Schüco AWS 114.SI (Super Insulated) window system combines the best thermal insulation up to passive house level with high efficiency in production, installation and operation, and can be designed as a parallel-opening or projected top-hung window.

With its large vent formats. the functional system can be integrated seamlessly into different façade geometries – even for high vent weights.

As a highly thermally insulated façade window with triple insulating glass, the insert unit offers a diverse range of design options for integration in nearly all Schüco façade systems.

หมวดหมู่:

Fabrication benefits

  • Outer and vent frames are joined in the workshop and are installed as a complete unit on the construction site
  • Simple installation of the window unit in the façade on the building site thanks to innovative clip principle using a spring clip
  • Use of locking cams and splash-proof cable connectors: simple installation of profile-integrated Schüco TipTronic drive technology
  • Innovative range of fittings for easy pre-assembly in the workshop
  • Easy to adjust and set the stays even under full load

Technical information

Uf value of frame (≥)1.4 W/(m²·K)
Min. face width52 mm
Min.-max. system basic depth91…137 mm
Max. glass/panel thickness52 mm
Max. weight250 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityClass 4
Max. sound reduction Rwp45 dB(A)
WatertightnessE 1200​
Impact resistanceClass 4
Burglar resistanceUp to RC2
Suitable for safety barrier loadingYes
Min. system basic depth91 mm
Max. system basic depth137 mm
Max. vent width2700 mm
Max. vent height3600 mm
Max. vent weight250 kg
Total width of unit2700 mm
Total height of unit3600 mm
Max. unit weight250 kg
Min.-max. face width52 mm
Face width of pressure plate / cover cap profile40 mm
Face width, outside52 mm
Face width, inside58 mm
Min. glass/panel thickness28 mm
Min.-max. glass/panel thickness28…52 mm
Max. width2700 mm
Max. height3600 mm
Installation angle90°
DrainageYes
Drainage levels1
Wind load resistanceC5/B5
Blast resistanceNo
Certificatescradle2cradle BRONZE
CE markingYes
RecyclableYes
StandardsDIN EN 1627, EN 14351, General building authority approval
AAMA certifiedYes
Building authority approvalYes

Documentation

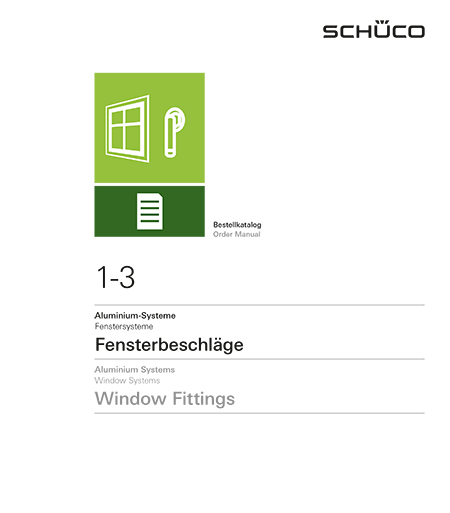

Order manual 1-3 – Window fittings
