ASS 70.HI

Highly thermally insulated sliding and lift-and-slide system with perfect watertightness, outstanding sound reduction and optional comfort technology

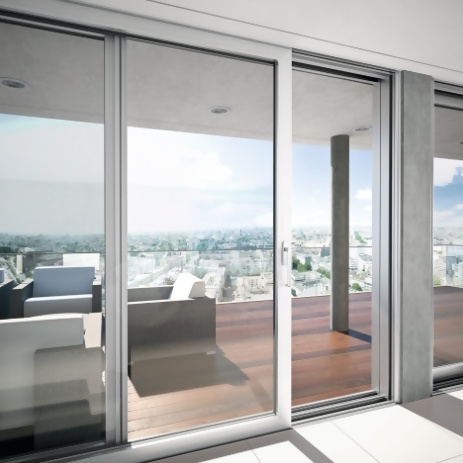

Based on single, double and triple-track outer frames, Schüco ASS 70.HI permits large opening widths with outstanding user comfort – perfect for use as a high-quality system solution in commercial projects and luxury residential properties. Optionally equipped with Schüco SmartStop and Schüco SmartClose comfort technology, the Schüco ASS 70.HI sliding and lift-and-slide system ensures that even large vent units can be operated easily and securely.

A large colour spectrum offers practically endless individual design options – even as far as selecting different colours for the inside and outside faces.

With customer-rolled profiles, Schüco offers its partners a high degree of flexibility in large commercial projects for efficient planning and fabrication.

หมวดหมู่:

FABRICATION BENEFITS

  • Customer-rolled profiles for high degree of flexibility in large commercial projects
  • High-quality, reliable fittings components
  • Reliable fabrication processes
  • Wide variety of options thanks to an extremely flexible system
  • Sliding and lift-and-slide options available

TECHNICAL INFORMATION

System basic depth
  • 70 mm
Min. face width
  • 86 mm
Uf value of frame (≥)
  • 2 W/(m²·K)
Max. glass/panel thickness
  • 52 mm
Max. vent width
  • 3000 mm
Max. vent height
  • 3000 mm
Max. sound reduction Rwp
  • 44 dB(A)
Air permeability
  • Class 4
Watertightness
  • RE 1050
Burglar resistance
  • Up to RC2
Wind load resistance
  • C5/B5
CE marking
  • Ja
Uw value of window (≥)
  • 1.3 W/(m²·K)
Max. vent weight
  • 400 kg
Min.-max. vent width
  • …3000 mm
Area of application
  • External use
  • Residential projects
  • Commercial projects
Proof of durability
  • Class 2
Surface finishes
  • Powder
  • Paint
Min.-max. glass/panel thickness
  • 24…52 mm
Operating forces
  • Class 1
Mechanical strength
  • Class 4
Electronic monitoring
  • Ja
Zero-level threshold
  • Ja
Width of vent frame
  • 70 mm
Colour-independent
  • Ja
Shear bond
  • Ja
Vent frame face width
  • 86 mm
SYSTEM / MATERIAL
  • Aluminium
ENERGY
  • Highly thermally insulated
System type
  • Sliding systems
  • Lift-and-slide system
TYPE OF DRIVE
  • Manual
Threshold height
  • &lt
  • 20 mm
Opening type
  • Type 2A
  • Type 2A/1
  • Type 2B
  • Type 2D
  • Type 2D/1
  • Type 3E/1
  • Type 3F
  • Type 2C
  • Type 3E
  • Type 1A
  • Type 1B
  • Type 1D
Number of tracks
  • Double track
  • Triple track
  • Single track
Operating type
  • manual
Track material
  • Steel
Wind resistance deflection
  • Class C5 / B5
Min. face width of interlocking section
  • 108 mm
Meeting stile design
  • Ja
Electronic drive
  • Ja
Fixed lights/identified vents
  • Ja
Concealed lock
  • Ja
Max. unit width
  • 18000 mm
Max. unit height
  • 3000 mm

SPECIFICATION TEXTS/PREVIEW SPECIFICATION

Schüco ASS 70.HI, highly thermally insulated, aluminium, lift-and-slide door system
With 160 mm basic frame depth (double track), 250 mm basic frame depth (triple track).
Burglar resistance in accordance with DIN EN 1627, RC 2 (WK2).

Design features:
The outer frames with one / two / three stainless steel replaceable tracks are made with precision corner cleats, as are the vent frames.

In the joint area, the outer frames have plastic cover profiles on all sides.
The vent profiles and sash bars must be designed with one-part (fixed) / two-part (split) insulating bars.
Vent profiles with a classic contour for the weight classes 150 kg, as well as 300 kg and 500 kg, are available.
In the interlock sections, the vent frame profiles are designed with structural reinforcements to suit requirements.
Fixed glazing can be designed in the outer frame as fixed glazing, and as glazing in the fixed vent frame.
To achieve the “HI” values, glazing gaskets with fins must be used.
These gaskets are configured in such a way that they do not appear to the observer to form a broad border around the edge of the glass.
Glazing is carried out using glazing beads, which are inserted with aluminium clips to compensate tolerances.
In the double-vent area of the outer vent, a thermally broken glazing bead must be inserted with a plastic clip.

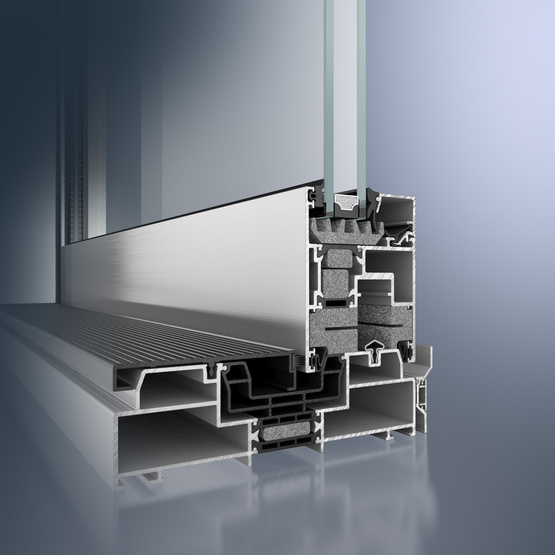

Profile basic depths:
Outer frame 160 mm single and double track / 250 mm triple track
Vent frame for both designs 70 mm
Vent sash bar, rebated 65 mm

Profile face widths:
Outer frame, continuous 31 mm
Vent frame with standard & SL contour 88 mm – 150 kg / 98 mm – 300 and 500 kg
Vent sash bar 88 mm
