Sliding System ASS 77 PD.HI manual

Panorama Design sliding system with vent-height pull grip allows you to experience excellent operating comfort with every touch

The Schüco ASS 77 PD.HI manual sliding system places an emphasis on visual appeal and haptics with an integrated vent-height pull grip. The highly developed Panorama Design system therefore offers optimum operating comfort combined with attractive vent design and maximum transparency.

Further advantages of the highly thermally insulated sliding system include the manual opening types with 90° corner without mullion and with a locking point in the double vent. An adjustment device for the subsequent adjustment of the outer frame is also now available, whereby the adjustment screws can be reached through the outer frame at any time. This is a great benefit with ceiling deflections, for example.

Schüco Seamless is the groundbreaking solution for almost frameless transparency of the building envelope. Seamless stands for the concealed combination of different Panorama Design systems which allows holistic seamless integration concepts to be realised for the building façade. The Schüco ASS 77 PD.HI sliding door system is integrated seamlessly in the Schüco FWS 35 PD.HI mullion/transom façade system for an even profile transition with no offset. In this way, the systems achieve a high level of thermal insulation with extremely narrow profile face widths.



  • Optimised system solution for attachments to building structure: adjustment device for adjusting the outer frame, as well as a modified drainage principle
  • Space-saving bonding device increases the quality and reduces fabrication time when bonding the panes
  • Rollers can be replaced without dismantling the moving vent


System basic depth
  • 197 mm
Min. face width
  • 37 mm
Max. glass/panel thickness
  • 60 mm
Max. vent width
  • 3200 mm
Max. vent height
  • 3500 mm
Max. sound reduction Rwp
  • 37 dB(A)
Air permeability
  • Class 4
  • Class 8A
Burglar resistance
  • Up to RC2
Wind load resistance
  • Class C2 / B2
CE marking
  • Ja
Uw value of window (≥)
  • 0.96 W/(m²·K)
Max. vent weight
  • 500 kg
Min.-max. vent width
  • 1000…3200 mm
Area of application
  • External use
  • Residential projects
  • Commercial projects
Minergie class
  • Minergie
Proof of durability
  • 200,000 cycles in accordance with DIN EN 12400
Surface finishes
  • Powder
  • Anodised
  • Paint
Min.-max. glass/panel thickness
  • 20…60 mm
Barrier-free (≤) 20 mm
  • Nein
Operating forces
  • Class 1
Width of vent frame
  • 77 mm
Total basic depth
  • 197 mm
  • Ja
Shear bond
  • Nein
Security glazing
  • Ja
Min.-max. face width of mullion
  • 37 mm
Min.-max. face width of meeting stile
  • 77 mm
  • Aluminium
  • Highly thermally insulated
System type
  • Sliding systems
  • Panorama Design system
  • Manual
Threshold height
  • &lt
  • 12.5 mm
Opening type
  • Type 2A
  • Type 2A/1
  • Type 2B
  • Type 2D
  • Type 2D/1
  • Type 2D/1 – 90° A
  • Type 2D/1 – 90° I
  • Type 3E/1
  • Type 3F
  • Type 2C
  • Type 3E
  • Type 2B 90°
  • Type 2B – 90° I
  • Type 2B – 90° A
Number of tracks
  • Double track
  • Triple track
Operating type
  • manual
Track material
  • Aluminium
Wind resistance deflection
  • Class C3
Min. system basic depth
  • 197 mm
Min.-max. system basic depth
  • 197…297 mm
Min. vent width
  • 1000 mm
Min. vent height
  • 2000 mm
Min. face width of interlocking section
  • 37 mm
Min. face width of mullion
  • 37 mm
Min. face width of meeting stile
  • 77 mm
Meeting stile design
  • Ja
Fixed lights/identified vents
  • Ja
Concealed lock
  • Ja
Max. unit width
  • 19200 mm
Max. unit height
  • 3000 mm
Number of vents
  • 6

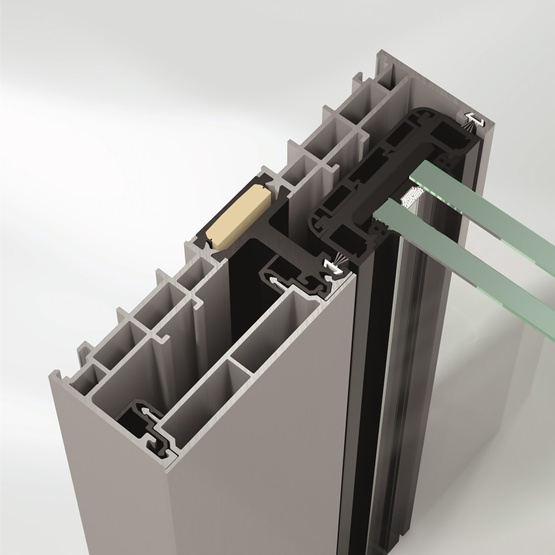

Schüco ASS 77 PD.HI, combined thermally insulated aluminium/GRP sliding door system
With 197 mm basic frame depth for double-track systems with maximum transparency and light penetration

Design features:
Aluminium outer frame with thermal break (PA insulating bars). The outer frame is fitted with removable roller profiles. The outer frame profiles can be mitred using precision-cut corner cleats. A butt joint design is also possible.
The very narrow polyamide vent profiles are bonded directly to the insulating glass unit in accordance with the system specifications and subsequently form a structural unit. The unit can optionally be designed with vent profiles for double and triple glazing. It must be ensured that the glass edge seal is compatible with the vent profiles. For optimum bonding, prior cleaning with a surface activator is required.
Vent weights of up to 500 kg are possible.
The interlock section is designed with aluminium and GRP profiles (glass fibre-reinforced plastic). The GRP profiles are covered by aluminium cover caps in the visible area.

Profile basic depths:
Outer frame 197 mm, double-track
Vent frame 77 mm

Profile face widths:
Outer frame Can be varied in accordance with installation location, optimum integration into the building structure due to low outer frame height of 90 mm to 58 mm

Possible fabrication:
Combination 1 (90/90): Outer frame, vertical: 90 mm, horizontal: 90 mm
Mitred (or butt joint) fabrication

Combination 2 (58/90): Outer frame, vertical: 58 mm, horizontal: 90 mm
Butt joint fabrication

Vent frame Fully concealed, integrated flush in the frame construction.
Face width in the centre section from 30 mm in the interlock section.
Energy: Thermal insulation: from Uw = 0.96 W/(m²K)

Maximum dimensions: Vent dimensions (W x H): up to max. 3200 mm x 3500 mm
Vent profile version 1: For glass thicknesses from 26 mm to 40 mm
Vent profile version 2: For glass thicknesses from 46 mm to 50 mm

Opening types:

Automation: Fully manual operation,
No electrical connection required.
Fully integrated closing and locking technology with small viewing field as lock display (red – closed / green – open). The latching function of the sliding component prevents you locking yourself out unintentionally.

Security: Burglar resistance to class RC 2 in accordance with DIN V ENV 1627 (on request)
Manual locking with 2 locking points,
Optional 4-point locking for increased security

Enhanced functions: Innovative guide rail system can be easily removed.
Rollers can be serviced and replaced without dismantling the moving vent.
The variety of handles from the Schüco entrance door range allows the moving vent to be closed and stopped securely using the handle outside of the crushing zone.
Free choice of handles from the Schüco entrance door range for a distance between supports of 350 mm.

Certification: Description of test specimen: Double-track sliding window, unit type 2A, manual.

The test results listed below refer to a test specimen with maximum permissible external dimensions
W x H: 6400 mm x 3000 mm

Air permeability in accordance with EN 12207:1999-11
Class 4

Watertightness in accordance with EN 12208:1999-11
Class 4A / 7A* (*with channel to drain cleaning water Art. No.: 348440)

Resistance in accordance with EN 12210:1999-11/AC:2002-08
Class C2/B2

Operating forces in accordance with EN 13115:2001-07
Class 1

Minergie certification
In progress / on request
