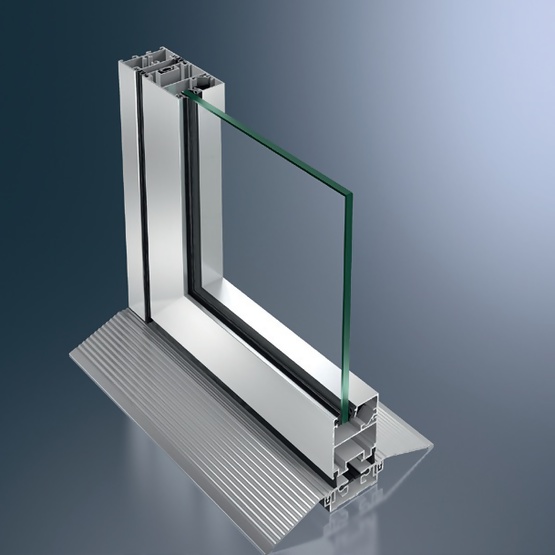

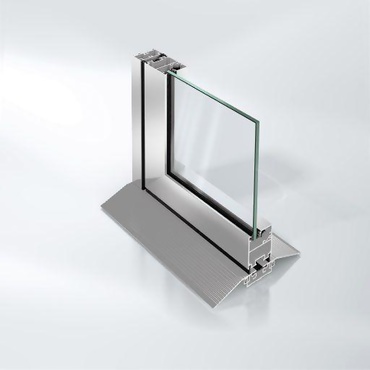

Folding Sliding System ASS 50 FD.NI

Schüco folding sliding systems offer the benefits of a wide choice of styles, quiet operation, perfect weathertightness, and high transparency

Different requirements can be met with the options of thermally insulated or non-insulated folding sliding systems. For example, the option of a flush threshold profi le provides an easyaccess entrance for showrooms in commercial premises. A turn / tilt opening vent provides additional convenience in the folding vent on outer frame side.

หมวดหมู่:
FABRICATION BENEFITS

Schüco folding sliding systems offer the benefits of a wide choice of styles, quiet operation, perfect weathertightness, and high transparency

Different requirements can be met with the options of thermally insulated or non-insulated folding sliding systems. For example, the option of a flush threshold profi le provides an easyaccess entrance for showrooms in commercial premises. A turn / tilt opening vent provides additional convenience in the folding vent on outer frame side.

TECHNICAL INFORMATION

System basic depth
  • 50 mm
Min. face width
  • 130 mm
Max. glass/panel thickness
  • 30 mm
Max. vent width
  • 1000 mm
Max. vent height
  • 2500 mm
Max. vent weight
  • 55 kg
Min.-max. vent width
  • 500…1000 mm
Area of application
  • External use
  • Residential projects
  • Internal use
Surface finishes
  • Powder
  • Paint
Min.-max. glass/panel thickness
  • 8…30 mm
Barrier-free (≤) 20 mm
  • Ja
Width of vent frame
  • 50 mm
Total basic depth
  • 50 mm
Colour-independent
  • Ja
Shear bond
  • Ja
Drainage levels
  • 2
Outer frame face width
  • 29 mm
Vent frame face width
  • 60 mm
Min.-max. face width of mullion
  • 130…130 mm
Min.-max. face width of meeting stile
  • 159…159 mm
Fittings installation
  • Barrel hinge
SYSTEM / MATERIAL
  • Aluminium
ENERGY
  • Non-insulated
System type
  • Folding sliding system
TYPE OF DRIVE
  • Manual
Threshold height
  • &lt
  • 12.5 mm
Opening type
  • Type 3
  • Type 4
  • Type 5
  • Type 6
  • Type 7
Number of tracks
  • Single track
Operating type
  • manual
Min. system basic depth
  • 50 mm
Min.-max. system basic depth
  • 50…59 mm
Min. vent width
  • 500 mm
Min. vent height
  • 500 mm
Min. face width of interlocking section
  • 130 mm
Min. face width of mullion
  • 130 mm
Min. face width of meeting stile
  • 159 mm
Power supply
Meeting stile design
  • Ja
Roller carriage material
  • Aluminium
Concealed lock
  • Ja
Max. unit width
  • 7000 mm
Max. unit height
  • 2500 mm

SPECIFICATION TEXTS/PREVIEW SPECIFICATION

Schüco ASS 50 FD.NI, non-insulated aluminium folding/sliding door system
With 50 mm basic depth, for indoor components and components with no particular thermal insulation requirements.

Design features:
The vent loads (max. 55 kg) are transferred to the top of the construction by means of roller carriages.
A structural expansion profile with integrated, adjustable suspension devices must be provided.
On the sill, the construction has a *flush-mounted / surface-mounted aluminium threshold to accommodate the guide rollers fitted to the vent frame.
The seal between outer and vent frames is provided by rebate gaskets or two bubble gaskets.
The opening vents must be operated with folding handles.
The outside face width for a standard fold is 130 mm.
Perlon brush profiles with stainless steel mountings on the back are positioned on the sill.

Profile basic depths:
Outer frame 50 mm
Vent frame (folding/sliding door) 50 mm

Profile face widths:
Outer frame 29 mm
Vent frame (folding/sliding door) 60 mm
Vent frame (inward-opening side-hung vent) 66 mm
Vent frame (outward-opening side-hung vent) 88 mm
Vent sash bar 68 mm

*Only for covered systems
