Non-insulated sliding system based on a double-track outer frame – the creative plus point for rooms that are flooded with light

With the Schüco Sliding System ASS 77 PD.NI (Non Insulation), highly-transparent sliding systems with large vent formats and narrow face widths can be implemented with even more creative designs – for rooms that are filled with light. As a non-insulated system, Schüco ASS 77 PD.NI is ideally suited for use in warm climate zones and indoors.




  • Thermal insulation: from Uw = 1.9 W/(m²K)
  • Glass thicknesses of up to 60 mm can be used


  • New, handle-free design with clean lines
  • Vent dimensions (W x H): maximum 3200 mm x 3500 mm
  • Face widths from 37 mm in the interlocking section
  • Vent weights up to 500 kg


  • Concealed, profile-integrated drive and locking system


  • Burglar resistance up to class RC 2 in accordance with DIN V ENV 1627
  • Automatic load and resistance recognition: increased safety as standard
  • Additional safety sensors ensure greater protection and maximum comfort (depending on requirements)
  • Manually-operated emergency unlocking in the event of a power cut

Enhanced function

  • Drive and locking technology with easy maintenance and care


System basic depth
  • 77 mm
Min. face width
  • 37 mm
Max. glass/panel thickness
  • 60 mm
Max. vent width
  • 3200 mm
Max. vent height
  • 3500 mm
Air permeability
  • Class 3
  • Class 6A
Burglar resistance
  • Up to RC2
Wind load resistance
  • Class C3 / B3
CE marking
  • Ja
Max. vent weight
  • 500 kg
Min.-max. vent width
  • 1000…3200 mm
Area of application
  • External use
  • Residential projects
  • Commercial projects
  • Internal use
Proof of durability
  • Class 3
Surface finishes
  • Powder
  • Anodised
  • Paint
Min.-max. glass/panel thickness
  • 20…60 mm
Barrier-free (≤) 20 mm
  • Nein
Operating forces
  • Class 1
Electronic monitoring
  • Ja
Zero-level threshold
  • Nein
Total basic depth
  • 200 mm
  • Ja
  • Ja
Security glazing
  • Ja
Min.-max. face width of mullion
  • 37…37 mm
Min.-max. face width of meeting stile
  • 71…71 mm
  • Aluminium
  • Non-insulated
System type
  • Sliding systems
  • Panorama Design system
  • TipTronic
Threshold height
  • &lt
  • 12.5 mm
Opening type
  • Type 2A
  • Type 2A/1
  • Type 2B
  • Type 2D
  • Type 2D/1
Number of tracks
  • Double track
Operating type
  • electric
Min. system basic depth
  • 200 mm
Min.-max. system basic depth
  • 200…200 mm
Min. vent width
  • 1000 mm
Min. vent height
  • 1200 mm
Min. face width of interlocking section
  • 37 mm
Min. face width of mullion
  • 37 mm
Min. face width of meeting stile
  • 71 mm
Power supply
  • 230 V/50 Hz
Meeting stile design
  • Ja
Electronic drive
  • Ja
Fixed lights/identified vents
  • Ja
Max. unit width
  • 12800 mm
Max. unit height
  • 3500 mm
Number of vents
  • 4


Schüco ASS 77 PD.NI, non-insulated aluminium sliding door system
With 200 mm basic frame depth for maximum transparency and light penetration

Design features:

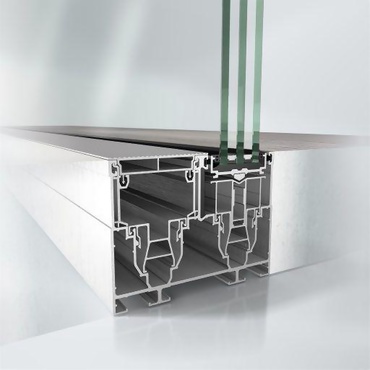

Outer frame
Aluminium outer frame without thermal break. The outer frame is fitted with two roller profiles which can be mitred using precision corner cleats.

Vent profiles
The very narrow polyamide vent profiles are bonded directly to the insulating glass unit in accordance with the system specifications and subsequently form a structural unit. The unit can optionally be designed with vent profiles for double and triple glazing. It must be ensured that the glass edge seal is compatible with the vent profiles. For optimum bonding, the seal must be cleaned with a surface activator.
Vent weights of up to 500 kg are possible.

Interlock section
The interlock section is designed with aluminium interlock profiles. The interlock section is sealed by means of a fully-integrated interlock section seal (Schüco USP) which is mechanically triggered by means of a spring when the moveable vent reaches the closed position.
Self-adhesive centre gaskets in the outer frame that could become damaged in the threshold area are purposely not used in this system. The gaskets are configured in such a way that they cannot be seen by the observer.

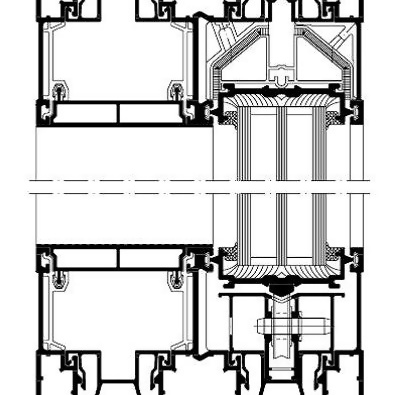

Profile basic depths:
Outer frame 200 mm, double-track

Vent frame 77 mm

Profile face widths:
Outer frame Can be varied in accordance with installation location, concealed in the building structure.
Outer frame height of 150 mm (not visible), including the integrated mechatronic locking and drive technology.

Vent frame Fully concealed, integrated flush in the frame construction.
Face width in the centre section from 30 mm in the interlock section.

Energy: Thermal insulation: from Uw = 1.9 W/(m²K)

Maximum dimensions: Vent dimensions (W x H): up to max. 3200 mm x 3500 mm
Glass thicknesses of 26 mm to 60 mm can be used
Double and triple insulating glass is possible

Opening types:

Automation: Flexible selection of the operating concept: The sliding window can be operated using the following components:
External control panel – touchscreen
Wall-mounted switch
BUS system / KNX system coupling
DCS – Door Control System (Schüco building automation)

Drive and locking Concealed, profile-integrated automatic drive and locking technology.
For service and maintenance purposes, the drive installed in the vertical outer frame can be accessed at all times from the inside via the outer frame and is elegantly concealed by a cover profile.

The highest level of convenience with fully automatic operation without a dead man’s switch (with the so-called dead man’s switch, the momentary-contact switch must be held down for opening).

Fully automatic operation is available from Schüco in series and up to safety class SK 4.
Note: To be able to estimate the potential danger which could arise from a power-operated window, and to enable the requisite protective measures to be taken, a risk assessment (e.g. in accordance with VFF data sheet KB.01: 2008-12) must be undertaken at the design stage. For further information on how to proceed, see the latest version of the sliding systems order manual 1-5B.

Security: Burglar resistance to class RC 2 in accordance with DIN V ENV 1627.

Automatic load and resistance recognition by software.

Securing of the danger zones using security sensors and sensor strips (depending on the opening type).

As standard, system-based securing of the secondary closing edges and the interlock section against accidental hand trapping during closing.

Manually operated unlocking in series using a special tool from the inside.
Additional security sensors are possible if required

Enhanced functions: Replacement of rollers without dismantling the moving vent.
Complete panoramic view, the vent profile disappears flush into the outer frame.

The integrated interlock section seal is fully integrated into the profile (USP), self-adhesive gasket components are not required in the outer frame (brush seal).

Fully automatic operation by means of a conventional wall-mounted switch, touchpad, DCS module or mobile end device (iPhone) is possible.

Certification: (Description of test specimen: Double-vent sliding window with moveable vents and electric drive)

The test results listed below refer to a test specimen with maximum permissible external dimensions
W x H: 3070 mm x 2875 mm

Air permeability in accordance with EN 12207:1999-11
Class 3

Watertightness in accordance with EN 12208:1999-11
Class 6A

Resistance in accordance with EN 12210:1999-11/AC:2002-08

Class C2 / B3

Operating forces in accordance with EN 13115:2001-07
(Operation is by means of drive technology)

Burglar resistance in accordance with DIN V ENV 1627
(Design-specific, see test certificate)

Sound insulation in accordance with DIN EN ISO 140-3
In progress

Resistance to repeated opening and closing in accordance with DIN EN 12400:2002-10
Class 3: (20,000 cycles)
(Design-specific, see test certificate)

Corrosion protection class as per DIN EN 1670
Class 4

Operating temperature
-20 °C to +50 °C

Minergie certification
In progress / on request
