PRODUCT BENEFITS
Energy
- Thermal insulation: Uw values of ≤ 1.8 W/(m²K), depending on the design
Design
- Vent size (W x H): up to 2500 mm x 2600 mm
- Vent weight up to 230 kg
Security
- Watertightness up to class 8A in accordance with DIN EN 12208
- Burglar resistance up to class RC 2 in accordance with DIN V ENV 1627
TECHNICAL INFORMATION
- System basic depth
-
- 43 mm
- Min. face width
-
- 75 mm
- Max. glass/panel thickness
-
- 32 mm
- Max. vent width
-
- 2500 mm
- Max. vent height
-
- 2600 mm
- Max. sound reduction Rwp
-
- 38 dB(A)
- Air permeability
-
- Class 4
- Watertightness
-
- Class 8A
- Burglar resistance
-
- Up to RC2
- Wind load resistance
-
- B3
- Uw value of window (≥)
-
- 1.8 W/(m²·K)
- Max. vent weight
-
- 230 kg
- Min.-max. vent width
-
- …2500 mm
- Area of application
-
- External use
- Residential projects
- Commercial projects
- Surface finishes
-
- Powder
- Paint
- Min.-max. glass/panel thickness
-
- 0…32 mm
- Operating forces
-
- Class 1
- Vent frame face width
-
- 75 mm
- SYSTEM / MATERIAL
-
- Aluminium
- ENERGY
-
- Thermally insulated
- System type
-
- Sliding systems
- TYPE OF DRIVE
-
- Manual
- Threshold height
-
- 50 – 75 mm
- Opening type
-
- Type 2A
- Type 2A/1
- Type 2B
- Type 2D
- Type 2D/1
- Type 3E/1
- Type 3E
- Type 1A
- Type 1B
- Type 1D
- Number of tracks
-
- Double track
- Triple track
- Single track
- Operating type
-
- manual
- Min. face width of interlocking section
-
- 85 mm
- Power supply
-
- –
SPECIFICATION TEXTS/PREVIEW SPECIFICATION

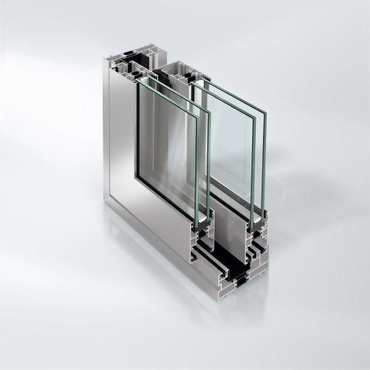

ASS 48, thermally insulated aluminium sliding window and door system
With 85 mm basic frame depth (double track), 100 mm basic frame depth (single track), 148 mm (triple track) and 48 mm basic vent frame depth.
Burglar resistance in accordance with DIN EN 1627, RC 2 (WK2).
Design features:

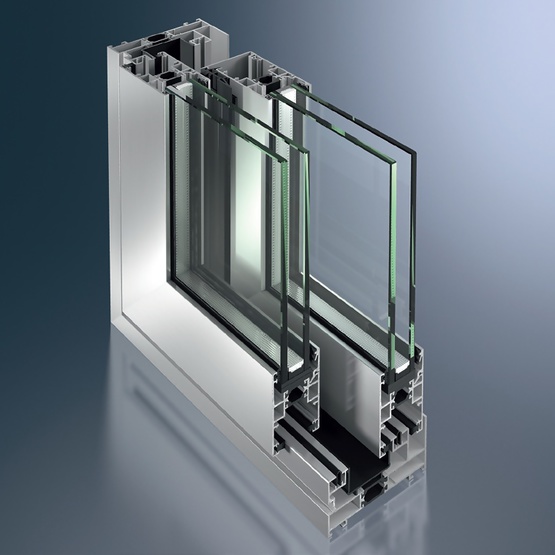

Sliding construction with 1 track / 2 tracks. The outer frames and vent frames are mitred, the frame connections are made with precision corner cleats. Vent profiles and vent sash bars are fitted with flush-fitted insulating bars.

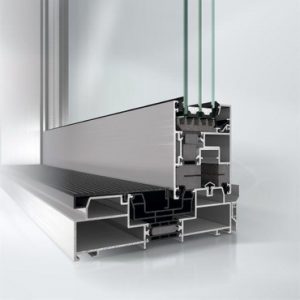

The bottom, replaceable tracks are made of stainless steel / aluminium. In the joint area, the outer frames have plastic cover profiles.
The units have a continuous drip bar outside on top.
The units are fitted underneath with outer frames with an additional hollow chamber to optimise the drainage system.
With single track units, fixed glazing is designed as glazing in the outer frame, the sliding vent is positioned on the outer track. The clearance area is fitted with special threshold and cladding profiles.
With double track units, fixed glazing is designed as glazing in the fixed vent frame. All vents can also be fitted with roller carriages (moveable).
Glazing is carried out using glazing beads; the glazing beads are installed using plastic glazing clips to compensate tolerances. Glazing thicknesses of up to 32 mm can be used. The glazing gaskets are configured in such a way that they do not appear to the observer to form a broad border around the edge of the glass.
Profile basic depths:
Outer frame, single track 100 mm
Outer frame, double track 85 mm
Vent frame 48 mm
Profile face widths:
Outer frame, top and side 50 / 70 mm
Outer frame, bottom 50 / 70 mm
Vent frame 75 mm
TEST DOCUMENTS
| Type of document |
|
Doc. no. / Download | |||||||||
| Product passport |
|
MB1007813_EN-03 (pdf, 980 KB) | |||||||||
| Classification report |
|
10233581e (pdf, 128 KB) | |||||||||
| Test report |
|
21232500e (pdf, 609 KB) | |||||||||
