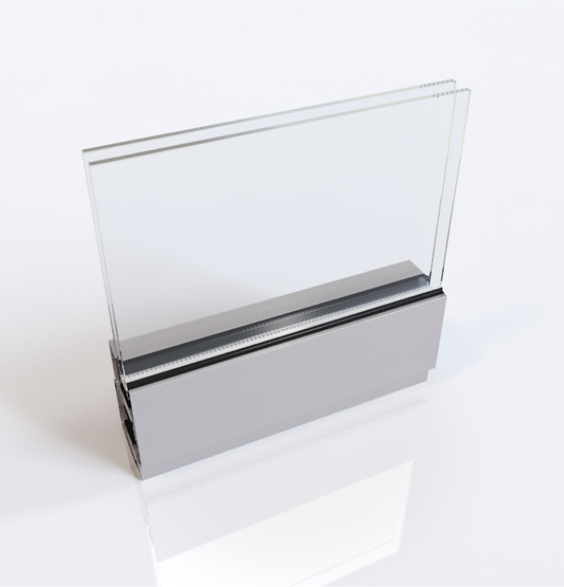

Window AWS 70.HI

High-quality window system with a comprehensive range of solutions

The Schüco Window AWS 70 combines efficient solutions for a wide variety of functional, architectural and design requirements in one system: a high level of thermal insulation, narrow face widths and attractive vent contours as well as concealed, classic manual or integrated electromechanical fittings for inward and outward-opening windows.



หมวดหมู่: , ป้ายกำกับ:

High-quality window system with a comprehensive range of solutions

The Schüco Window AWS 70 combines efficient solutions for a wide variety of functional, architectural and design requirements in one system: a high level of thermal insulation, narrow face widths and attractive vent contours as well as concealed, classic manual or integrated electromechanical fittings for inward and outward-opening windows.

With a rounded vent contour in conjunction with the matching glazing bead, the Schüco Window AWS 70 SL.HI (Soft Line) series offers an attractive design solution. With its bevelled outer contours, Schüco Window AWS 70 RL.HI (Residential Line) is first choice for modernisation or for giving visual emphasis. With its narrow steel contour, the Schüco Window AWS 70 ST.HI (Steel Contour) is specially designed for refurbishing old steel windows or fitting new homes with attractive steel-look windows. The Schüco AWS 70 WF.HI (Window Facade) system facilitates economical solutions with a mullion/transom appearance and many design options.

Features and benefits

Excellent thermal insulation with a basic depth of 70 mm: Uf value of 1.7 W/ (m²K) (face width 117 mm) Enhanced insulation zone with foam-filled insulating bars Additional glazing rebate insulation can be used Available as crank-operated turn/tilt solution for large, heavy units Solution for easy-access patio and balcony doors in turn/tilt and double vent construction as well as outward-opening (side-hung and double vent construction) Use of crimped and nailed corner cleats, also as a new, additional connection option: screw-type connection technology to minimise noise generation and equalise tolerances Multi-coloured profile design Concealed drainage Drainage at the lowest profile point Completely concealed Schüco AvanTec SimplySmart system fitting up to 160 kg or with heavy-duty fitting up to 200 kg (turn/tilt) / 250 kg (side-hung) Vent profiles for Schüco TipTronic with vent weights of up to 160 kg Extensive range of profiles with face widths from 26 mm to 250 mm Insert outer frame with adapter gasket for different glazing thicknesses Burglar resistance up to WK3 (RC 3) in accordance with DIN V ENV 1627 (DIN EN 1627)



PRODUCT BENEFITS

Energy

  • Uf value of 1.6 W/(m²K) with a face width of 117 mm

Design

  • Wide range of profiles including 3 design lines: Residential Line,
Soft Line and
Steel Contour
  • Crank-operated turn/tilt solution optional for large, heavy units

Automation

  • Motorised fittings solutions possible with Schüco TipTronic

Security

  • Burglar resistance tested to RC 3
  • Increase in the distance from the handle to 28 mm owing to the installation of a cavity-fitted gearbox for milling out (optional)

TECHNICAL INFORMATION

SYSTEM / MATERIAL
  • Aluminium
ENERGY
  • Highly thermally insulated
DESIGN
  • Classic
  • standard
FUNCTIONS
  • Decentralised ventilation
  • Burglar resistance
  • Increased security
  • Increased sound reduction
  • Easy operation
  • Motorisation
  • Ease of access
  • Sun shading
System basic depth
  • 70 mm
Min. face width
  • 91 mm
Uf value of frame (≥)
  • 1.5 W/(m²·K)
Max. glass/panel thickness
  • 62 mm
Max. vent width
  • 1700 mm
Max. vent height
  • 2500 mm
Max. sound reduction Rwp
  • 48 dB(A)
Air permeability
  • Class 4
Watertightness
  • Class 9A
Burglar resistance
  • Up to RC3
Wind load resistance
  • C5/B5
CE marking
  • Ja
Uw value of window (≥)
  • 0.92 W/(m²·K)
Max. vent weight
  • 200 kg
Min.-max. vent height
  • 490…2500 mm
Min.-max. vent width
  • 450…1700 mm
Area of application
  • External use
  • Residential projects
  • Commercial projects
Proof of durability
  • Class 3
Surface finishes
  • Powder
  • Anodised
  • Paint
Opening type: TipTronic, outward-opening
  • Projected top-hung
Opening type: TipTronic, inward-opening
  • Turn/tilt
  • Side-hung
  • Bottom-hung
  • Toplight
Opening type: manual, outward-opening
  • Side-hung
  • Projected top-hung
  • Projected side-hung
  • Horizontal pivot
  • Vertical pivot
Opening type: manual, inward-opening
  • Turn/tilt
  • Side-hung
  • Bottom-hung
  • Double-vent turn/tilt / side-hung
  • Double-vent side-hung / side-hung
  • Tilt/slide
  • Tilt-before-turn
  • Toplight
  • Horizontal pivot
  • Vertical pivot
Min.-max. glass/panel thickness
  • 21…62 mm
Barrier-free (≤) 20 mm
  • Ja
Certificates
  • cradle2cradle SILVER
Operating forces
  • Class 1
Mechanical strength
  • Class 4
Suitable for safety barrier loading
  • Ja
Concealed fittings system
  • Ja
Zero-level threshold
  • Ja
Width of vent frame
  • 80 mm
Corrosion protection class for fittings
  • Class 5
Ug value of glass (≤)
  • 0.3 W/(m²·K)
Glass composition
  • Triple glazing
Barrier-free operating forces in accordance with DIN 18040
  • Ja
Total basic depth
  • 80 mm
Colour-independent
  • Ja
TipTronic
  • Ja
Shear bond
  • Ja
Toplight
  • Ja
Drainage levels
  • 3
Integrated sun shading
  • Ja
Security glazing
  • Ja
Opening angle
  • 180°
Outer frame face width
  • 51 mm
Vent frame face width
  • 40 mm
Max. face width of mullion
  • 250 mm
Min.-max. face width of mullion
  • 76…250 mm
Max. face width of meeting stile
  • 163 mm
Min.-max. face width of meeting stile
  • 148…163 mm

SPECIFICATION TEXTS

PREVIEW SPECIFICATION

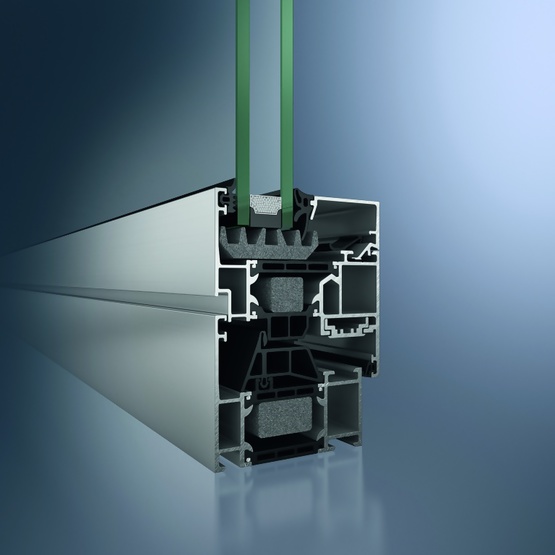

Schüco AWS 70.HI, highly thermally insulated aluminium window system
With 70 mm basic depth.

Design features:
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge, flush-fitted on the outside.
The high-volume hollow chamber profile centre gasket is located in the area of the insulation zone.
The system must be fitted with square glazing beads.
The glazing beads are installed with plastic clips to compensate tolerances.
For increased thermal insulation, glazing gaskets with fins must be used.

Profile basic depths:
Outer frame, mullion, transom 70 mm
Vent frame 80 mm

Profile face widths:
Outer frame, bottom 104 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Vent frame (window) 41 mm
Vent frame (window door) 61 mm
Double-vent profile (window) 67 mm
