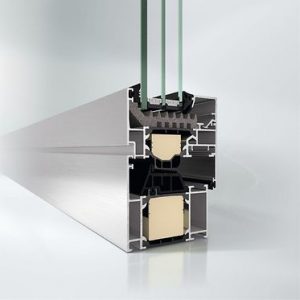

Window AWS 60

PRODUCT BENEFITS

Energy

Basic depths of 50 mm and 60 mm with insulated and non-insulated systems
Wide insulation zone ensures good thermal insulation
Schüco Window AWS 50.NI available as a non-insulated starter series

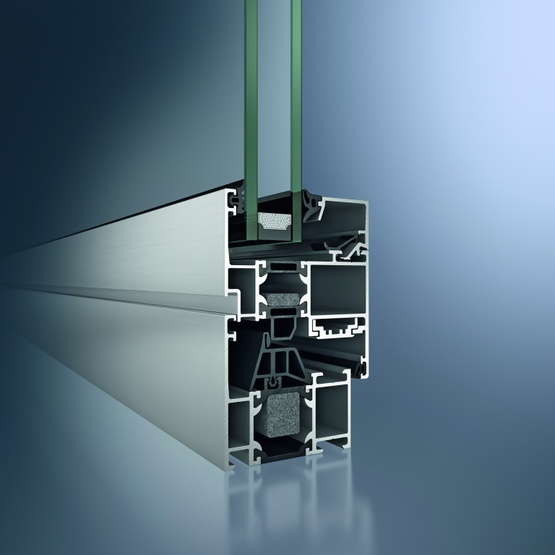

Schüco Window AWS 60.HI as design option with optimised thermal insulation

Design

Narrow face widths from 51 mm, including Schüco AWS 50 RL (Residential Line) and Schüco AWS 50 SL (Soft Line) design series
Wide range of profiles including 3 design series: Schüco AWS 60 RL, Schüco AWS 60 SL and Schüco AWS 60 BS (Block System)
Schüco AvanTec SimplySmart: concealed fittings for inward-opening systems up to 160 kg

Security

Burglar resistance of Schüco Window AWS 60 up to RC 2 for outward-opening systems

TECHNICAL INFORMATION

SYSTEM / MATERIAL

Aluminium

ENERGY

Thermally insulated

DESIGN

Classic
standard

FUNCTIONS

Decentralised ventilation
Burglar resistance
Increased security
Increased sound reduction
Maximum load

System basic depth

60 mm

Min. face width

91 mm

Uf value of frame (≥)

1.7 W/(m²·K)

Max. glass/panel thickness

50 mm

Max. vent width

1700 mm

Max. vent height

2500 mm

Max. sound reduction Rwp

47 dB(A)

Air permeability

Class 4

Watertightness

Class 9A

Burglar resistance

Up to RC2

Wind load resistance

Class C5 / B5

CE marking

Uw value of window (≥)

1 W/(m²·K)

Max. vent weight

250 kg

Min.-max. vent height

490…2500 mm

Min.-max. vent width

450…1700 mm

Area of application

External use
Residential projects
Commercial projects

Proof of durability

Class 3

Surface finishes

Powder
Anodised
Paint

Opening type: TipTronic, inward-opening

Turn/tilt
Side-hung
Bottom-hung
Toplight

Opening type: manual, outward-opening

Side-hung
Projected top-hung
Projected side-hung
Horizontal pivot
Vertical pivot
Double-vent side-hung / side-hung

Opening type: manual, inward-opening

Turn/tilt
Side-hung
Bottom-hung
Double-vent turn/tilt / side-hung
Double-vent side-hung / side-hung
Tilt/slide
Tilt-before-turn
Toplight
Horizontal pivot
Vertical pivot

Min.-max. glass/panel thickness

11…50 mm

Barrier-free (≤) 20 mm

Certificates

cradle2cradle SILVER

Operating forces

Class 1

Mechanical strength

Class 4

Suitable for safety barrier loading

Concealed fittings system

Width of vent frame

70 mm

Corrosion protection class for fittings

Class 5

Ug value of glass (≤)

0.3 W/(m²·K)

Glass composition

Triple glazing

Barrier-free operating forces in accordance with DIN 18040

Total basic depth

70 mm

Colour-independent

TipTronic

Shear bond

Toplight

Drainage levels

Integrated sun shading

Security glazing

Opening angle

180°

Outer frame face width

51 mm

Vent frame face width

40 mm

Max. face width of mullion

250 mm

Min.-max. face width of mullion

76…250 mm

Max. face width of meeting stile

163 mm

Min.-max. face width of meeting stile

148…163 mm

SPECIFICATION TEXTS/PREVIEW SPECIFICATION

Schüco AWS 60, thermally insulated aluminium window system
With 60 mm basic depth.

Design features:
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge, flush-fitted on the outside.
The centre gasket is located in the area of the insulation zone.
The system must be fitted with square glazing beads.
The glazing beads are installed with plastic clips to compensate tolerances.

Profile basic depths:
Outer frame, mullion, transom 60 mm
Vent frame 70 mm

Profile face widths:
Outer frame, bottom 94 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Vent frame (window) 41 mm
Vent frame (window door) 61 mm
Double-vent profile (window) 67 mm
