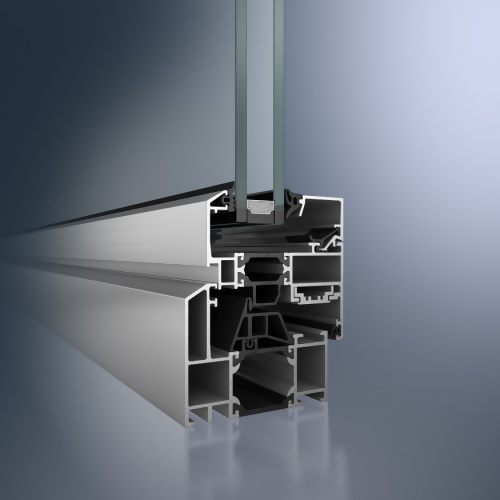

Window AWS 65 RL

FABRICATION BENEFITS

Design series with bevelled external contours for visual emphasis with good thermal insulation properties
Improved thermal insulation with a basic depth of 65 mm
Compatible with the Schüco ADS door range
Comprehensive profile range

TECHNICAL INFORMATION

SYSTEM / MATERIAL

Aluminium

ENERGY

Thermally insulated

DESIGN

FUNCTIONS

Decentralised ventilation
Increased security
Increased sound reduction

System basic depth

75 mm

Min. face width

Uf value of frame (≥)

1.9 W/(m²·K)

Max. glass/panel thickness

50 mm

Max. sound reduction Rwp

47 dB(A)

Air permeability

Class 4

Watertightness

Class 9A

Burglar resistance

Up to RC3

Wind load resistance

C5/B5

Uw value of window (≥)

Surface finishes

Powder
Paint

Opening type: manual, inward-opening

Turn/tilt
Side-hung
Bottom-hung
Double-vent turn/tilt / side-hung
Double-vent side-hung / side-hung
Tilt-before-turn

Min.-max. glass/panel thickness

Certificates

cradle2cradle SILVER

SPECIFICATION TEXTS/PREVIEW SPECIFICATION

Schüco AWS 65 RL, thermally insulated aluminium window system
With 75 mm basic depth.

Design features:
Outer frame extension 15 mm, mullion and transom profiles 14 mm deep and bevelled at 30°.
External glazing rebate beads of the vent frames 10 mm deep and bevelled at 30°.
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge, flush-fitted on the outside.
The high-volume hollow chamber profile centre gasket is located in the area of the insulation zone.
The system must be fitted with square glazing beads.
The glazing beads are installed with plastic clips to compensate tolerances.

Profile basic depths:
Outer frame 75 mm
Mullion, transom 74 mm
Vent frame 75 mm

Profile face widths:
Outer frame 59 mm
Mullion and transom 84 mm
Vent frame (window) 33 mm
Vent frame (window door) 61 mm
Double-vent profile 67 mm
