Window System AWS 50

Wide variety of window solutions for international markets

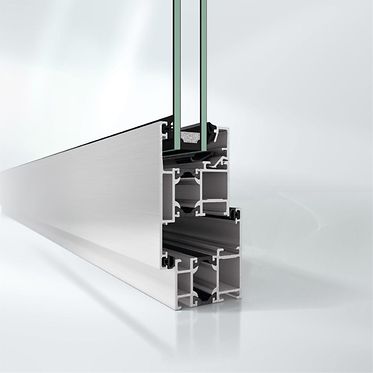

The thermally insulated standard window system for the 50 mm basic depth offers extensive solutions from a single source to suit a range of requirements.

It is based on the functional and design properties of the aluminium system: benefits such as narrow face widths and concealed fittings are combined in perfectly integrated components for inward and outward-opening windows.

The high level of flexibility of the system enables a variety of uses as a punched opening, ribbon window or façade insert unit, as well as in combination with Schüco door systems.

An additional benefit for specifiers and architects is that the window system can be designed in a number of different opening types such as side-hung and turn/tilt vents, bottom-hung toplights or barrier-free window doors.

An outward-opening window design with centre gasket is also available as a double-vent window with burglar resistance in accordance with test procedure PAS 24.

As part of the Schüco AWS system platform, the window system offers a wide range of profiles, including corner mullions, structural mullions, symmetrical and asymmetrical mullions, as well as a number of design variations and additional combination options, such as with Schüco sun shading and ventilation systems.

Schüco AWS 50 thereby sets standards in terms of planning flexibility and offers attractive window solutions for meeting the requirements of international markets.

หมวดหมู่:

Fabrication benefits

  • Maximum use of identical parts within the system and within the Schüco AWS modular system
  • Schüco AvanTec SimplySmart fitting ensures efficient fabrication: flexible, simple and intuitive
  • Vent parts self-positioning and installed without tools
  • Fittings installation without locking bar recess on the vent facilitates faster fabrication
  • Symmetrical cavity-fitted gearbox can be used on the right and left-hand side; simplified cutting of the locking bar and reduced storage requirements

Technical information

System basic depth50 mm
Min. face width91 mm
Uf value of frame (≥)2.5 W/(m²·K)
Max. glass/panel thickness40 mm
Max. vent width1700 mm
Max. vent height2500 mm
Max. sound reduction Rwp43 dB(A)
Air permeabilityClass 4
WatertightnessClass 9A
Burglar resistanceUp to RC1
Wind load resistanceClass C5 / B5
CE markingYes
Total basic depth60 mm
Width of vent frame60 mm
Max. vent weight250 kg
Min.-max. vent height540…2500 mm
Min.-max. vent width470…1700 mm
Outer frame face width51 mm
Vent frame face width40 mm
Max. face width of mullion250 mm
Min.-max. face width of mullion76…250 mm
Max. face width of meeting stile163 mm
Min.-max. face width of meeting stile148…163 mm
Min.-max. glass/panel thickness4…40 mm
Barrier-free (≤) 20 mmYes
Zero-level thresholdNo
Area of applicationExternal use, Residential projects, Residential projects, Commercial projects
Shear bondYes
Concealed fittings systemYes
Surface finishesPowder, Anodised, Paint
Glass compositionTriple glazing
ToplightYes
Operating forcesClass 1
Barrier-free operating forces in accordance with DIN 18040Yes
TipTronicYes
Opening type: manual, outward-openingSide-hung, Double-vent side-hung / side-hung, Projected top-hung, Projected side-hung, Horizontal pivot, Vertical pivot
Opening type: manual, inward-openingTurn/tilt, Side-hung, Bottom-hung, Double-vent turn/tilt / side-hung, Double-vent side-hung / side-hung, Tilt/slide, Toplight, Horizontal pivot, Vertical pivot, Tilt-before-turn
Opening angle180 °
Mechanical strengthClass 4
Proof of durabilityClass 3
Corrosion protection class for fittingsClass 5
Uw value of window (≥)1.3 W/(m²·K)
Ug value of glass (≤)0.3 W/(m²·K)
Drainage levels3
Integrated sun shadingYes
Security glazingYes
Suitable for safety barrier loadingYes
Certificatescradle2cradle SILVER
Colour-independentYes

Documentation

[B] Basic depth 50 mm

View online

[C] Schüco AWS 50

View online

Order manual 1-3 – Window fittings

View onlineDownload

[Cb] Schüco AWS 50

View online

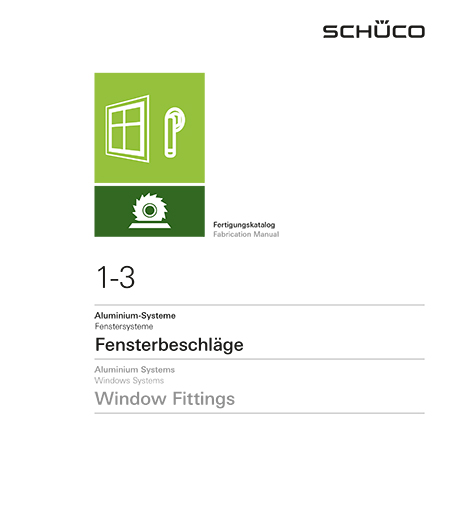

Fabrication manual 1-3 – Window fittings

View onlineDownload

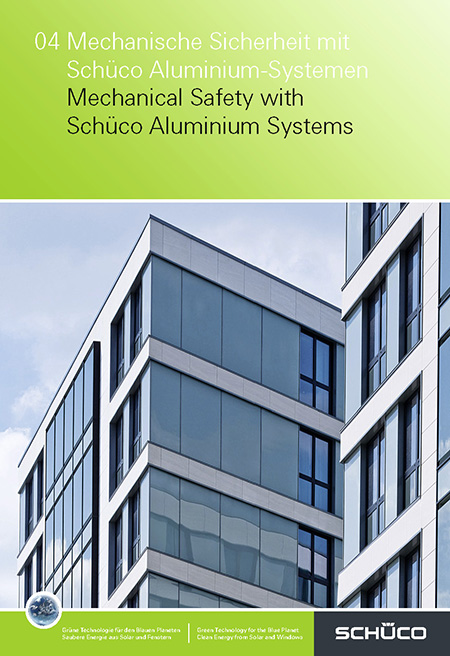

Mechanical security with Schüco aluminium systems

View onlineDownload

Specification texts

Schüco AWS 50, thermally insulated aluminium window system
With 50 mm basic depth.

Design features:
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge, flush-fitted on the outside.
The system must be fitted with square glazing beads.
The glazing beads are installed with plastic clips to compensate tolerances.

Profile depths:
Outer frame, mullion, transom 50 mm
Leaf frame 60 mm
Vent frame, Top Swing 75 mm

Profile face widths:
Outer frame, bottom 94 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Vent frame (window) 41 mm
Vent frame (window door) 61 mm
Double-vent profile (window) 52 mm

download

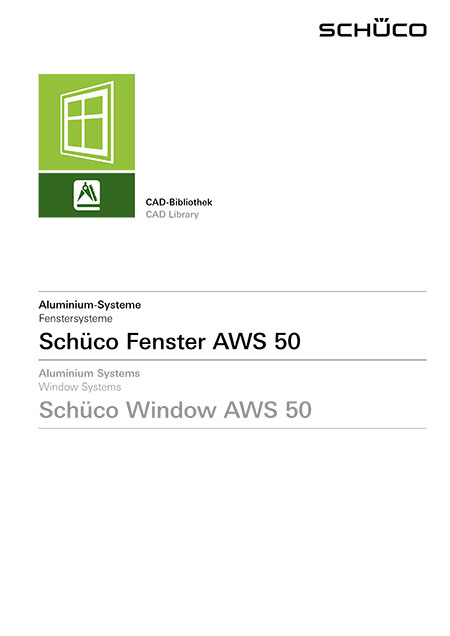

CAD data

Planning principles

View online

System drawings

View online

Rule details

View online

Test documents

Document type Test type Result Classification Document no. / Download
Prüfbericht Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Q100 = 0,33
1200
600
Klasse 3
Klasse E 1200
Klasse C3 / B3
View onlineDownload (pdf, 201.7 KB)
Prüfzeugnis Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Bedienungskraft
Vertikallast
Widerstand gegen Stat. Verw.
Q100(L)=0.53 ; Q100(F)=1.40
300
3000

800
350

Klasse 4
Klasse 7A
Klasse C5/B5
Klasse 1
Klasse 4
Klasse 4
View onlineDownload (pdf, 231.8 KB)
Prüfzeugnis Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Bedienungskraft
Vertikallast
Widerstand gegen Stat. Verw.
Q100(L)=0.53 ; Q100(F)=1.40
300
3000

800
350

Klasse 4
Klasse 7A
Klasse C5/B5
Klasse 1
Klasse 4
Klasse 4
View onlineDownload (pdf, 232.4 KB)
Prüfzeugnis Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Bedienungskraft
Vertikallast
Verbiegen/Verwinden
Q100(L)=0,53 Q100(F)=1,39
600
P3 = 3000
4,7
350
800
Klasse 4
Klasse 9A
C5 / B5
Klasse 1
Klasse 4
Klasse 4
View onlineDownload (pdf, 228.3 KB)
Prüfzeugnis Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Bedienungskraft
Vertikallast
Verbiegen/Verwinden
Q100(L)=0,53 Q100(F)=1,39
600
P3 = 3000
4,7
350
800
Klasse 4
Klasse 9A
C5 / B5
Klasse 1
Klasse 4
Klasse 4
View onlineDownload (pdf, 214.5 KB)
Prüfzeugnis Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Q100 = 0,33
1200
600
Klasse 3
Klasse E 1200
Klasse C3 / B3
View onlineDownload (pdf, 196.0 KB)
Prüfzeugnis Schallmessung 43 Klasse 4 (alte Norm) View onlineDownload (pdf, 408.6 KB)
Prüfzeugnis Schallmessung 43 Klasse 4 (alte Norm) View onlineDownload (pdf, 407.3 KB)
Prüfzeugnis Schallmessung 43 Klasse 4 (alte Norm) View onlineDownload (pdf, 408.6 KB)
Prüfzeugnis Schallmessung 43 Klasse 4 (alte Norm) View onlineDownload (pdf, 407.3 KB)
