Window System AWS 90 BS.SI+

Block window with maximum thermal insulation and concealed vent for sophisticated designs

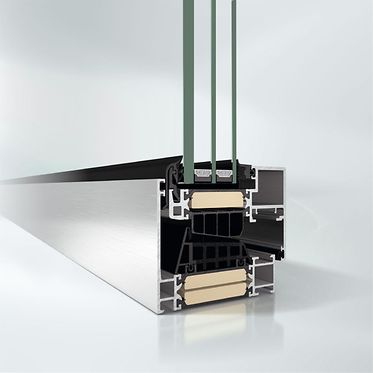

Optimised thermal insulation combined with the benefits of an aluminium window construction in a slimline design without visible vent contours – Schüco AWS 90 BS.SI+ (Block System Super Insulation) meets the highest architectural requirements with the greatest possible transparency.

The block window system is part of the Schüco AWS modular system for the 90 mm basic depth and features optimised characteristics in terms of function, energy efficiency and design.

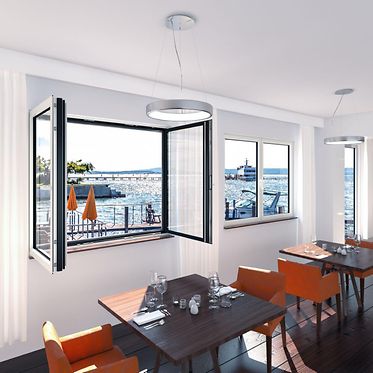

Thanks to the high level of system flexibility, sophisticated design solutions are possible for a wide range of architectural requirements in the building envelope: as a punched opening, ribbon window or insert unit in Schüco façade systems as well as a “floating window”.

The wide range of opening types includes designs as side-hung and turn/tilt vents as well as bottom-hung toplights.

Another benefit of the block window series is the wide range of profiles for the system, including corner mullions, structural mullions, symmetrical and asymmetrical mullions, vent glazing bars and insert outer frames as well as TipTronic vent profiles. They enable the use of the Schüco TipTronic SimplySmart generation of electrical fittings, a fully integrated drive for numerous opening types.

The block window system thereby sets standards in terms of planning and design flexibility for the construction of energy-efficient, stylish building envelopes.

หมวดหมู่:

Technical information

System basic depth90 mm
Min. face width77 mm
Uf value of frame (≥)0.96 W/(m²·K)
Max. glass/panel thickness58 mm
Max. vent width1700 mm
Max. vent height2400 mm
Max. sound reduction Rwp49 dB(A)
Air permeabilityClass 4
WatertightnessClass 9A
Burglar resistanceUp to RC3
Wind load resistanceClass C4 / B4
CE markingYes
Total basic depth100 mm
Width of vent frame100 mm
Max. vent weight180 kg
Min.-max. vent height540…2400 mm
Min.-max. vent width470…1700 mm
Outer frame face width77 mm
Vent frame face width0 mm
Max. face width of mullion202 mm
Min.-max. face width of mullion107…202 mm
Max. face width of meeting stile104 mm
Min.-max. face width of meeting stile104…104 mm
Min.-max. glass/panel thickness28…58 mm
Area of applicationExternal use, Residential projects, Residential projects, Commercial projects
Shear bondYes
Concealed fittings systemYes
Surface finishesPowder, Anodised, Paint
Glass compositionTriple glazing
ToplightNo
Operating forcesClass 1
Barrier-free operating forces in accordance with DIN 18040Yes
TipTronicYes
Opening type: TipTronic, inward-openingTurn/tilt, Side-hung, Bottom-hung, Toplight
Opening type: manual, inward-openingTurn/tilt, Side-hung, Bottom-hung, Double-vent turn/tilt / side-hung, Double-vent side-hung / side-hung, Tilt/slide, Toplight, Tilt-before-turn
Opening angle180 °
Mechanical strengthClass 4
Proof of durabilityClass 3
Corrosion protection class for fittingsClass 5
Uw value of window (≥)0.91 W/(m²·K)
Ug value of glass (≤)0.3 W/(m²·K)
Drainage levels3
Security glazingYes
Suitable for safety barrier loadingYes
Certificatescradle2cradle SILVER
Colour-independentYes

Documentation

[D] Schüco AWS 90 BS.SI⁺

View online

[G] Basic depth 90 mm

View online

Order manual 1-3 – Window fittings

View onlineDownload

[Hc] Schüco AWS 90 BS.SI+

View online

Fabrication manual 1-3 – Window fittings

View onlineDownload

Schüco Aluminium window and door systems

View onlineDownload

CAD data

Planning principles

View online

System drawings

View online

Rule details

View online

Design suggestions

View online

Test documents

Document type Test type Result Classification Document no. / Download
Prüfzeugnis Schallmessung 42 (-2;-7) View onlineDownload (pdf, 366.1 KB)
Prüfzeugnis Schallmessung 42 (-2;-7) View onlineDownload (pdf, 366.2 KB)
Prüfzeugnis Schallmessung 37 (-2;-6) View onlineDownload (pdf, 366.7 KB)
Prüfzeugnis Schallmessung 39 (-2;-5) View onlineDownload (pdf, 367.9 KB)
Prüfzeugnis Schallmessung 37 (-2;-6) View onlineDownload (pdf, 366.7 KB)
Prüfzeugnis Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Q100(L)=0,16 Q100(F)=0,36
600
+/- 1800
Klasse 4
Klasse 9A
Klasse C3/B3
View onlineDownload (pdf, 181.7 KB)
Prüfzeugnis Schallmessung 33 (-1;-5) View onlineDownload (pdf, 368.0 KB)
Prüfzeugnis Schallmessung 33 (-2;-6) View onlineDownload (pdf, 365.6 KB)
Prüfzeugnis Schallmessung 33 (-1;-5) View onlineDownload (pdf, 367.9 KB)
Prüfzeugnis Schallmessung 33 (-2;-6) View onlineDownload (pdf, 365.7 KB)
