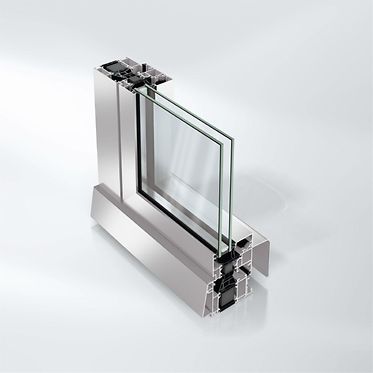

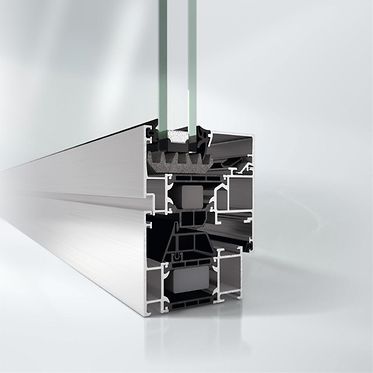

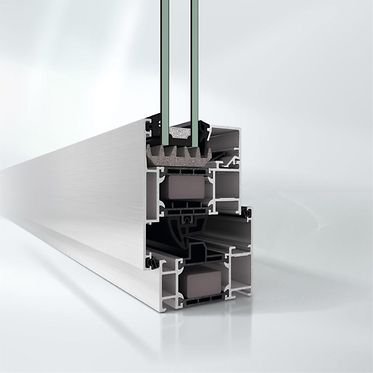

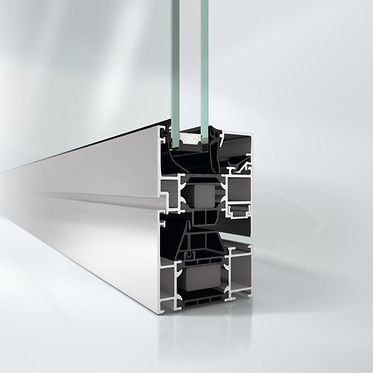

Window System AWS 70.HI

Highly thermally insulated window system with attractive range of solutions

As part of the Schüco AWS system platform, Schüco AWS 70.HI (High Insulation) offers an attractive range of solutions with outstanding thermal insulation for the 70 mm basic depth.

It is based on the functional, energy-efficiency and design properties of the aluminium construction: perfectly tailored components combine benefits such as excellent thermal insulation values, narrow face widths and concealed, standard manual or electromechanical fittings for inward and outward-opening windows.

The high level of flexibility of the system enables a variety of uses to meet a range of different building envelope requirements: as a punched opening, ribbon window or façade insert unit, as well as in combination with Schüco door systems.

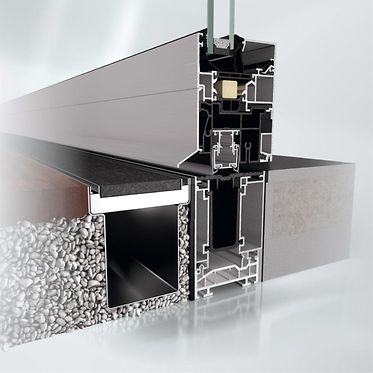

An additional benefit for architects and specifiers is the wide range of opening types such as crank-operated turn/tilt vents, bottom-hung toplights or barrier-free window doors.

A wide range of profiles is available within the system platform, including corner mullions, structural mullions, symmetrical and asymmetrical mullions, as well as a number of design variations and additional combination options, such as with Schüco sun shading and ventilation systems.

Schüco AWS 70.HI thereby sets standards in terms of planning flexibility and offers attractive window solutions for ambitious, energy-efficient building envelopes.

หมวดหมู่:

Technical information

System basic depth70 mm
Min. face width91 mm
Uf value of frame (≥)1.5 W/(m²·K)
Max. glass/panel thickness62 mm
Max. vent width1700 mm
Max. vent height2500 mm
Max. sound reduction Rwp48 dB(A)
Air permeabilityClass 4
WatertightnessClass 9A
Burglar resistanceUp to RC3
Wind load resistanceC5/B5
CE markingYes
Total basic depth80 mm
Width of vent frame80 mm
Max. vent weight200 kg
Min.-max. vent height540…2500 mm
Min.-max. vent width470…1700 mm
Outer frame face width51 mm
Vent frame face width40 mm
Max. face width of mullion250 mm
Min.-max. face width of mullion76…250 mm
Max. face width of meeting stile163 mm
Min.-max. face width of meeting stile148…163 mm
Min.-max. glass/panel thickness21…62 mm
Barrier-free (≤) 20 mmYes
Zero-level thresholdYes
Area of applicationExternal use, Residential projects, Residential projects, Commercial projects
Shear bondYes
Concealed fittings systemYes
Surface finishesPowder, Anodised, Paint
Glass compositionTriple glazing
ToplightYes
Operating forcesClass 1
Barrier-free operating forces in accordance with DIN 18040Yes
TipTronicYes
Opening type: TipTronic, outward-openingProjected top-hung
Opening type: TipTronic, inward-openingTurn/tilt, Side-hung, Bottom-hung, Toplight
Opening type: manual, outward-openingSide-hung, Projected top-hung, Projected side-hung, Horizontal pivot, Vertical pivot
Opening type: manual, inward-openingTurn/tilt, Side-hung, Bottom-hung, Double-vent turn/tilt / side-hung, Double-vent side-hung / side-hung, Tilt/slide, Toplight, Horizontal pivot, Vertical pivot, Tilt-before-turn
Opening angle180 °
Mechanical strengthClass 4
Proof of durabilityClass 3
Corrosion protection class for fittingsClass 5
Uw value of window (≥)0.92 W/(m²·K)
Ug value of glass (≤)0.3 W/(m²·K)
Drainage levels3
Integrated sun shadingYes
Security glazingYes
Suitable for safety barrier loadingYes
Certificatescradle2cradle SILVER
Colour-independentYes

Documentation

[F] Schüco AWS 70.HI

View online

[E] Basic depth 70 mm

View online

Order manual 1-3 – Window fittings

View onlineDownload

[Fa] Schüco AWS 70.HI

View online

Fabrication manual 1-3 – Window fittings

View onlineDownload

Schüco Aluminium window and door systems

View onlineDownload

Mechanical security with Schüco aluminium systems

View onlineDownload

Specification texts

Schüco AWS 70.HI, highly thermally insulated aluminium window system
With 70 mm basic depth.

Design features:
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge, flush-fitted on the outside.
The high-volume hollow chamber profile centre gasket is located in the area of the insulation zone.
The system must be fitted with square glazing beads.
The glazing beads are installed with plastic clips to compensate tolerances.
For increased thermal insulation, glazing gaskets with fins must be used.

Profile basic depths:
Outer frame, mullion, transom 70 mm
Vent frame 80 mm

Profile face widths:
Outer frame, bottom 104 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Vent frame (window) 41 mm
Vent frame (window door) 61 mm
Double-vent profile (window) 67 mm

download

CAD data

Planning principles

View online

System drawings

View online

Rule details

View online

Test documents

Document type Test type Result Classification Document no. / Download
Prüfzeugnis Schallmessung 39 dB Klasse 3 ( alte Norm ) View onlineDownload (pdf, 81.2 KB)
Prüfzeugnis Schallmessung 37 dB Klasse 3 ( alte Norm ) View onlineDownload (pdf, 81.2 KB)
Prüfzeugnis Schallmessung 37 dB Klasse 3 ( alte Norm ) View onlineDownload (pdf, 81.5 KB)
Prüfbericht Schallmessung 38 dB Klasse 3 ( alte Norm ) View onlineDownload (pdf, 611.4 KB)
Prüfzeugnis Schallmessung 44 dB Klasse 4 ( alte Norm ) View onlineDownload (pdf, 81.3 KB)
Prüfzeugnis Schallmessung 39 dB Klasse 3 ( alte Norm ) View onlineDownload (pdf, 81.5 KB)
Prüfzeugnis Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Q100(L)= 0,16 / Q100(F)= 0,41
1350
-/+ 3000
Klasse 4
E1350
Klasse C5/B5
View onlineDownload (pdf, 213.8 KB)
Prüfzeugnis Luftdurchlässigkeit
Windwiderstandsfähigkeit
Schlagregendichtheit
Q100 = 0,39
1200
900
Klasse 4
Klasse C3 / B3
E900
View onlineDownload (pdf, 159.8 KB)
Prüfzeugnis Luftdurchlässigkeit
Windwiderstandsfähigkeit
Schlagregendichtheit
Q100 = 0,39
1200
900
Klasse 4
Klasse C3 / B3
E900
View onlineDownload (pdf, 170.2 KB)
Prüfzeugnis Schallmessung 46 (-1;-5) View onlineDownload (pdf, 203.8 KB)
