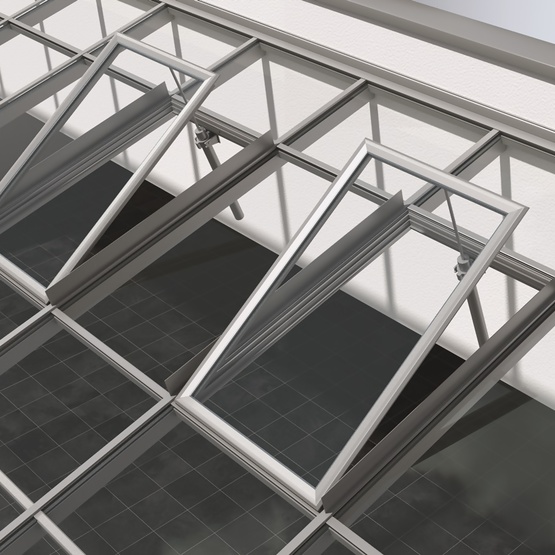

Natural Smoke and Heat Exhaust Ventilation Systems (NSHEVS) for vertical and skylight areas in accordance with EN 12101-2

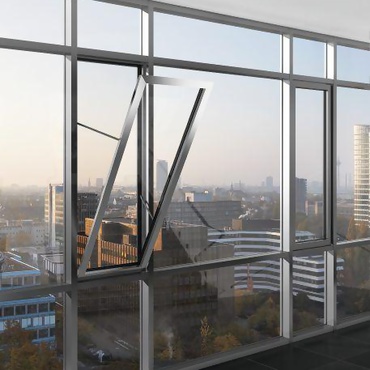

Schüco TipTronic SimplySmart SHEVS is the perfect combination of approved NSHEVS safety solutions for smoke and fire protection together with convenient ventilation functions. The highly efficient system solution ensures smoke extraction and heat exhaust ventilation during a fire and can be used for daily ventilation. With Schüco SHEVS control units, windows can be configured in a simple and convenient way using Schüco software. Connection to standardised building management systems is ensured via a KNX interface. The system is fully tested in accordance with DIN EN 12101-2 and offers numerous benefits such as virtually silent operation in silent mode for the ventilation function, integrated finger-trap protection up to safety class 2 by means of software and up to safety class 4 by means of sensor strip, a completely concealed fittings system for a wide range of profile systems and opening types.

Schüco SHEVS control units offer secure solutions for Schüco TipTronic SimplySmart SHEVS and surface-mounted SHEVS actuators.

In the event of a fire, Schüco SHEVS control units open window actuators securely and reliably, saving human lives in the process. In daily operation, they ensure sufficient fresh air and comfort by means of controlled, natural ventilation – either as compact control units for stairwells, or as module control units which can be networked via interfaces for complex smoke extraction scenarios. There is a choice of the Schüco SHEVS module control unit MSC1 for complex networking which meets every requirement for large-scale projects, or the Schüco SHEVS compact control unit CSC1 for stairwells and small project solutions.

หมวดหมู่:
FABRICATION BENEFITS



  • Tested in accordance with EN 12101-2
  • Use as punched opening, ribbon window and in mullion/transom constructions
  • Concealed fittings produce a streamlined design
  • Generously proportioned openings: SHEVS function up to 800 mm, ventilation function up to 300 mm
  • Can also be used for daytime ventilation as well as for night-time cooling
  • Integrated finger-trap protection up to safety class 4 (TÜV certified)
  • Easy to install: no profile machining necessary
  • Adherence to all standard requirements, e.g. watertightness, sound reduction and thermal insulation

TECHNICAL INFOS

Area of application
  • Commercial projects
  • Window
  • Façades
SYSTEM / MATERIAL
  • Fittings
ENERGY
  • Thermally insulated
  • Non-insulated
FUNCTIONS
  • Fire protection
  • Smoke protection
  • Ventilation
Installation option
  • Integrated

TENDER SPECIFICATIONS

PREVIEW SPECIFICATION

Design in accordance with the current summary of the initial tests by the system provider.

Tried and tested comprehensive solutions (NSHEVS) complete with window and actuator must be used.
A summary test certificate (testing for aerodynamics, fire and continuous loading) must be provided when the order is placed.
The manufacture of NSHEVS devices must be independently tested by a recognised testing body.
Tested NSHEVS devices must be certified with a CE sign issued for approved building products.
The approved, tested vent dimensions, vent weights and vent surfaces for each opening type and design must be determined in accordance with the dimensioning documentation of the system manufacturer.
Only tested fittings that belong to the system may be used (type and design are described separately). The SHEVS units must also be fitted with the hinges belonging to the described system. Refer to the system manufacturer’s size tables for the number required.

Profile basic depths and face widths: see system description of the standard system

The profiles used are joined using PA 66 profile insulating bars.

BF 651 Mechatronic TipTronic SimplySmart side-hung fitting for SHEVS in accordance with EN 12101-2
Profile-integrated mechatronic side-hung fitting, suitable for inward-opening Schüco profile systems

Functions:
NSHEVS function takes precedence over ventilation
NSHEVS function 400 / 600 / 800 mm length of travel
Ventilation function up to 500 mm length of travel via maintained contact switch
Manual unlocking for cleaning (can be turned 90°)
Silent mode (quieter opening of the ventilation function)

Features:
Control via a Schüco SHEVS control unit when SHEVS is activated;
The locking points are installed in the vent profile without the need for machining;
Fully concealed fittings components in the closed position;
Complete fitting without shoot bolts and corner drives;
Opening width for ventilation up to 500 mm;
Combined monitoring of opening and closing (with e-locking roller with magnet) VDS class B / C;
Finger-trap protection via software to safety class SK 2;
Additional finger-trap protection via sensor strip, safety class 4 (depending on the risk assessment);
Detachable cable link connector between outer frame and vent frame;
Mechanical emergency unlocking

Technical data:
Input/operating voltage: 24 V DC (-20% +30 %)
Rated current: Approx. 1.3 A on 300 N full load
Run-time. Approx. 5 sec. / 100 mm length of travel
Power-on time: 3 min. (ON) 7 min. (OFF)

BF 652 Mechatronic TipTronic SimplySmart bottom-hung fitting for SHEVS in accordance with EN 12101-2
Profile-integrated mechatronic bottom-hung fitting, suitable for inward-opening Schüco profile systems

Functions:
NSHEVS function takes precedence over ventilation
NSHEVS function 400 / 600 / 800 / 1000 mm length of travel
Ventilation function up to 500 mm length of travel via maintained contact switch
Silent mode (quieter opening of the ventilation function)

Features:
Control via a Schüco SHEVS control unit when SHEVS is activated;
The locking points are installed in the vent profile without the need for machining;
Fully concealed fittings components in the closed position;
Complete fitting without shoot bolts and corner drives;
Opening width for ventilation up to 500 mm;
Combined monitoring of opening and closing (with e-locking roller with magnet) VDS class B / C;
Finger-trap protection via software to safety class SK 2;

Additional finger-trap protection via sensor strip, safety class 4 (depending on the risk assessment);
Detachable cable link connector between outer frame and vent frame;
Mechanical emergency unlocking

Technical data:
Input/operating voltage: 24 V DC (-20% +30 %)
Rated current: Approx. 1.3 A on 300 N full load
Run-time. Approx. 5 sec. / 100 mm length of travel
Power-on time: 3 min. (ON) 7 min. (OFF)

BF 653 Mechatronic TipTronic SimplySmart bottom-hung fitting (drawbridge) for SHEVS in accordance with EN 12101-2
Profile-integrated mechatronic bottom-hung fitting, installed at the side, suitable for inward-opening Schüco profile systems

Functions:
NSHEVS function takes precedence over ventilation
NSHEVS function 400 (600) / 600 (900) / 800 (1200) mm length of travel (opening width)
Ventilation function up to 500 mm length of travel via maintained contact switch
Silent mode (quieter opening of the ventilation function)

Features:
Control via a Schüco SHEVS control unit when SHEVS is activated;
The locking points are installed in the vent profile without the need for machining;
Fully concealed fittings components in the closed position;
Complete fitting without shoot bolts and corner drives;
Opening width for ventilation up to 500 mm;
Combined monitoring of opening and closing (with e-locking roller with magnet) VDS class B / C;
Finger-trap protection via software to safety class SK 2;
Additional finger-trap protection via sensor strip, safety class 4 (depending on the risk assessment);
Detachable cable link connector between outer frame and vent frame;
Mechanical emergency unlocking

Technical data:
Input/operating voltage: 24 V DC (-20% +30 %)
Rated current: Approx. 1.3 A on 300 N full load
Run-time. Approx. 5 sec. / 100 mm length of travel
Power-on time: 3 min. (ON) 7 min. (OFF)

BF 654 Mechatronic TipTronic SimplySmart top-hung fitting for SHEVS in accordance with EN 12101-2
Profile-integrated mechatronic top-hung fitting, suitable for outward-opening Schüco profile systems

Functions:
NSHEVS function takes precedence over ventilation
Natural SHEVS function up to 400 / 600 mm length of travel
Ventilation function up to 500 mm length of travel via maintained switch provided by customer
Silent mode (quieter opening of the ventilation function)

Features:
Control via a Schüco SHEVS control unit when SHEVS is activated;
The locking points are installed in the vent profile without the need for machining;
Fully concealed fittings components in the closed position;
Complete fitting without shoot bolts and corner drives;
Opening width for ventilation up to 500 mm;
Combined monitoring of opening and closing (with e-locking roller with magnet) VDS class B / C;
Finger-trap protection via software to safety class SK 2;
Mechanical emergency unlocking

Technical data:
Input/operating voltage: 24 V DC (-20% +30 %)
Rated current: Approx. 1.3 A on 300 N full load
Cut-out: Integrated electronic load cut-off via control unit
Run-time. Approx. 5 sec. / 100 mm length of travel
Power-on time: 3 min. (ON) 7 min. (OFF)
