TipTronic SimplySmart

New generation of concealed mechatronic fittings with a focus on minimised noise generation as well as maximised opening widths

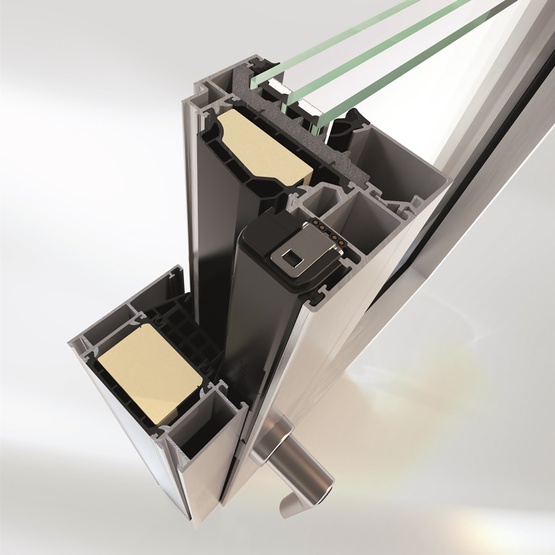

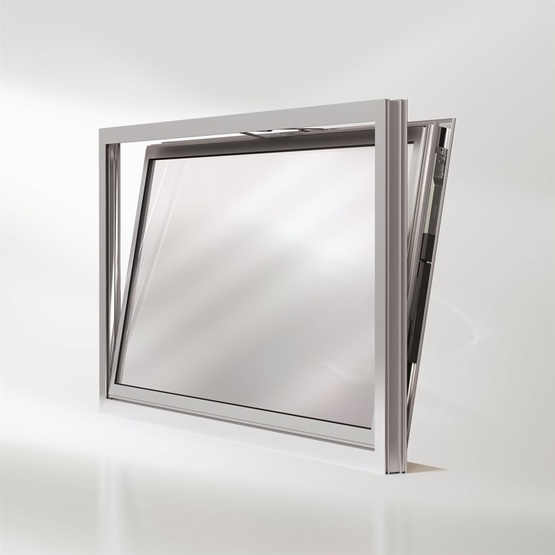

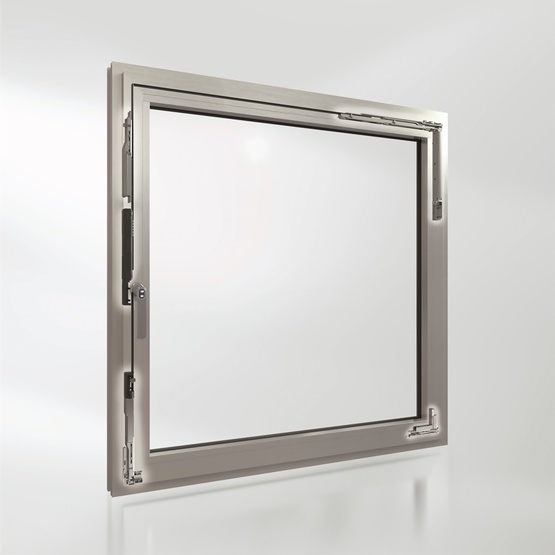

Schüco TipTronic SimplySmart sets new standards for concealed actuator technology. It not only represents the quietest mechatronic Schüco actuator on the market, but is also a fully-tested system consisting of an actuator, fitting and profile system. Increased opening widths and flexible unit sizes also allow Schüco TipTronic SimplySmart to be used in almost all Schüco window systems with various opening types.

When integrated into the building automation system, the very quiet-running fittings series fulfils a wide range of requirements in terms of energy efficiency, convenience and security for commercial as well as residential projects. A variety of automated ventilation functions such as night-time cooling, crack ventilation or timed ventilation save on energy costs, ensure a pleasant indoor climate and can be easily combined with fire protection requirements (smoke extraction, NSHEVS).

Furthermore, Schüco TipTronic SimplySmart uses modular security locking to lock the window at multiple points and provides increased burglar resistance up to RC 2 (WK 2). In addition to the integrated anti-finger-trap protection in safety class 2, Schüco also offers anti-finger-trap protection with a sensor strip, which reacts to even the slightest contact with any part of the frame and corresponds to safety classes 3 and 4.

As well as manual operation using a handle or wall-mounted switch, mobile end devices such as tablets and smartphones can also be used – the perfect solution for windows or toplights that are difficult or impossible to reach. Fabricators benefit not only from the more time and cost-efficient fabrication due to the extensive use of identical parts, but also from the new intuitive software to make commissioning easy.
