Economy 60 Door System

Filigree steel profile system for interior door constructions

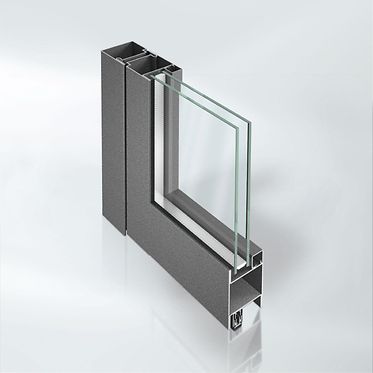

The non-insulated Jansen Economy® 50 steel profile system with a wall thickness of 1.5 mm is particularly suitable for filigree and flush single and double-leaf door constructions and fixed glazing. The shadow gap running around the inside and outside gives the door constructions an elegant appearance.

The appearance of the flush Jansen Economy® 50 doors is identical to the thermally insulated Janisol® door series and the smoke and fire protection door series. This means that the same appearance can be achieved even with different planning requirements.

หมวดหมู่:

Fabrication benefits

  • Slim profile face width and basic depth of only 60 mm
  • Large single and double-leaf door constructions possible
  • Appearance identical to the thermally insulated, flush-fitted Janisol® doors and Janisol ®2 fire doors T30
  • Optional burglar and bullet resistance
  • Complete range of fittings available including attractive stainless steel barrel hinges

Technical information

System basic depth60 mm
Uf value of frame (≥)5.3 W/(m²·K)
Max. height3015 mm
Max. width2840 mm
Max. glass/panel thickness36 mm
Area of applicationInternal use, Residential projects, Residential projects, Commercial projects
Surface finishesRAL, Powder, Paint
Air permeabilityClass 4
WatertightnessClass 5A
Wind load resistanceClass C5
Burglar resistanceUp to RC3
Ud value of door (≥)2.6 W/(m²·K)
Max. vent weight230 kg
Min.-max. height1915…3015 mm
Min.-max. width530…2840 mm
Max. clear opening dimension (w x h)2800 x 3000 mm
Min. clear opening dimension (w x h)490 x 1900 mm
Min. face width105 mm
Min.-max. glass/panel thickness5…36 mm
Barrier-free (≤) 20 mmYes
Zero-level thresholdYes
Thick door leaf60 mm
Type of designSingle-vent, Double-vent, Single-vent with toplight and side section, Double-vent with toplight and side section
Vent optionFlush-fitted, Insert panel infill, Anti-finger-trap door, Finger-trap protection
Infill typeInsert panel infill, Door infill, leaf-enclosing on two sides
Door thresholdAutomatic door gasket, Flat door threshold, Easy-access door threshold
Special applicationsAnti-finger-trap door, Sheet metal clad door
Fitting materialSteel, Stainless steel
Concealed fittings systemYes
Neutral-colour fittingYes
Fittings installationSurface-mounted door hinge, Concealed door hinge, Barrel hinge
Electric strikesYes
With panic functionYes
Finger-trap protectionYes
Opening typeInward and outward, Single and double-vent
DIN directionDIN LH / RH
Door swingFlush-fitted
Proof of durability1,000,000 in accordance with DIN EN 12400
Max. sound reduction Rwp44 dB(A)
Security systemYes
Top / bottom door closersYes
Door closer typeTop closers, Floor springs
CertificatesEPD
CE markingYes

Documentation

Architecture in steel and glass

View onlineDownload

Specification texts

Economy 60 door
Steel profile system for doors and partition walls with 60 mm basic depth, for indoor components and components without thermal insulation requirements.

Design features:
All corner and T-joints are securely welded together.
Glass and/or infills of 4 mm to 40 mm can be used.
Door leaves flush-fitted inside and outside with a 5 mm shadow gap on all sides.
Double, continuous rebate weatherstrip on three sides. Transition to automatic floor seal without using special seals.
Please select the required type of glazing and delete the alternatives.
The glazing of the construction is arranged around the centre (depth of glazing beads identical inside and outside)
Glazing bead: ???
A glazing bead is used on one side of the glazing.
Glazing bead: ???
End of selection of glazing type
Please select the required type of seal and delete the alternatives.
The infills are sealed using EPDM weatherstrips. Specially designed glazing beads must be used for this purpose. (Important: dry, internal areas only)
The infill is sealed in using double-sided tape and sealing is by means of permanently elastic sealing compound.
End of seal selection

Profile depths:
Outer frame, mullion, transom 60 mm
Leaf frame (door) 60 mm

Profile face widths:
Outer frame (door) 40/65/90 mm
Z trim (door) 40 mm
Outer frame (glazing) 70/90 mm
Sill rail profile (glazing) 70/90 mm
Mullion 90 mm
Transom 90 mm
Leaf frame (door) 85 mm
Sill rail profile (door) 90 mm

download

CAD data

Jansen-Economy 60 doors – non insulated

View onlineDownload

Jansen-Economy 60 Anti-finger-trap Door

View onlineDownload

Test documents

Document type Test type Result Classification Document no. / Download
Prüfzeugnis Beschuß FB4 NS FB4 NS View onlineDownload (pdf, 81.2 KB)
Prüfzeugnis Beschuß Widerstandsklasse FB4 NS View onlineDownload (pdf, 91.1 KB)
Prüfzeugnis Beschuß FB4 NS FB4 NS View onlineDownload (pdf, 45.9 KB)
Prüfbericht Schallmessung View onlineDownload (pdf, 593.9 KB)
Prüfbericht Fähigkeit zur Freigabe Anforderung erfüllt Anforderung erfüllt View onlineDownload (pdf, 8.0 MB)
Prüfzeugnis Beschuß FB5 S FB5 S View onlineDownload (pdf, 1.6 MB)
Prüfzeugnis Beschuß FB6 NS FB6 NS View onlineDownload (pdf, 947.2 KB)
Prüfzeugnis Beschuß FB5 S FB5 S View onlineDownload (pdf, 1.6 MB)
Prüfzeugnis Beschuß FB6 NS FB6 NS View onlineDownload (pdf, 1.3 MB)
Prüfzeugnis Beschuß FB6 NS FB6 NS View onlineDownload (pdf, 1.6 MB)
