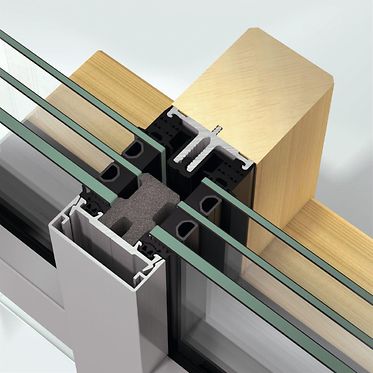

Façade System AOC 60 TI.HI

Highly thermally insulated add-on construction on timber for façades and skylights

Thanks to a ground-breaking isolator design, the Schüco AOC 60 TI.HI (Timber High Insulated) façade system can be used to create highly thermally insulated skylights and large-scale vertical façades in a 60 mm system width on steel substructures, with a wide range of design options.

Patented system components enable simple and reliable designs, including load transfer and screw guidance, even with large pane dimensions and triple glazing.

An innovative sealing system ensures maximum thermal insulation in the roof area thanks to an integrated screw guide.

The highly thermally insulated add-on construction on timber combines energy-efficient, aesthetically pleasing construction with efficient fabrication and installation.

หมวดหมู่:

Fabrication benefits

  • Sealing components without use of sealant in the vertical façade for efficient and secure installation
  • Patented screw guide: different infill thicknesses can be inserted reliably and efficiently

Technical information

Uf value of frame (≥)0.97 W/(m²·K)
Min. face width60 mm
Max. glass/panel thickness64 mm
Max. weight280 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityAE 1350
Max. sound reduction Rwp51 dB(A)
WatertightnessRE 1350
Impact resistanceI5/E5
Burglar resistanceUp to RC3
Suitable for safety barrier loadingYes
Max. unit weight280 kg
Min.-max. face width60 mm
Face width of pressure plate / cover cap profile60 mm
Face width, outside60 mm
Face width, inside60 mm
Face width of mullion60 mm
Face width of frame60 mm
Face width of transom60 mm
Min. glass/panel thickness26 mm
Min.-max. glass/panel thickness26…64 mm
Max. glass/infill weight280 kg
Installation angle2-105°
Polygon façade angle20°
Skylight construction, min. vert. incline2°
Skylight construction, max. vert. incline105°
Skylight construction, min.-max. vert. incline2…105°
Skylight constructionYes
DrainageYes
Drainage levels3
Wind load resistance2.0/3.0 [kN/m²]
Sun shading attachmentYes
Spandrel safety barriersSurface-mounted, Façade-mounted
CE markingYes
RecyclableYes
StandardsDIN EN 1627, DIN EN 13830, General building authority approval
Building authority approvalYes

Documentation

[B] System overview Schüco AOC

View online

[D] Schüco AOC 60

View online

[I] Timber Substructures Vertical façade

View online

[L] Special points

View online

CAD data

Planning principles

View online

System drawings

View online

Rule details
