Fabrication benefits
- Simple and fast cleaning and maintenance of the rollers without removing the vent
- Easy to fabricate individual components
- Reduced number of individual components ensures easier and thus more reliable fabrication of the system
- Easier, faster fabrication because no bonding is necessary
- Butt joint or mitre joint fabrication
Technical information

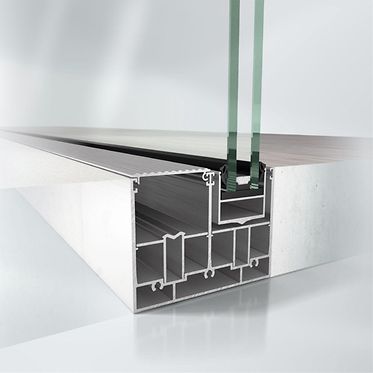

System basic depth39 mm
Max. vent width3000 mm
Max. vent height3500 mm
Max. vent weight350 kg
Min. face width37 mm
Max. glass/panel thickness32 mm
Uw value of window (≥)1.9 W/(m²·K)
Total basic depth107 mm
Min. system basic depth107 mm
Min.-max. system basic depth107…162 mm
Width of vent frame39 mm
Min. vent width1000 mm
Min.-max. vent width1000…3000 mm
Min. vent height2000 mm
Max. unit width18000 mm
Max. unit height3500 mm
Outer frame face width0 mm
Vent frame face width0 mm
Min. face width of interlocking section37 mm
Min. face width of mullion37 mm
Min.-max. face width of mullion37 mm

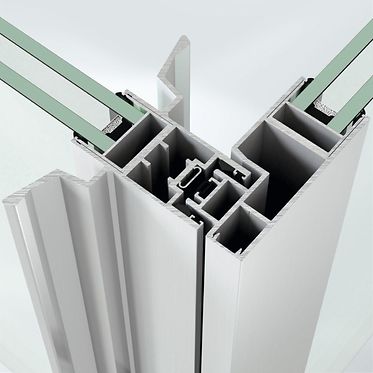

Min. face width of meeting stile90 mm
Min.-max. face width of meeting stile90 mm
Face width of fixed glazing0 mm
Min.-max. glass/panel thickness6…32 mm
Threshold height< 12,5

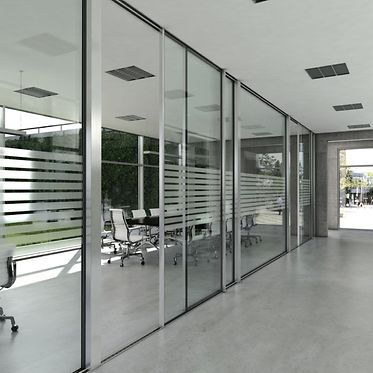

Area of applicationInternal use, External use, Commercial projects
Meeting stile designYes
Number of vents6
Fixed lights/identified ventsYes
Number of tracksDouble track, Triple track
Track materialAluminium
Surface finishesPowder, Anodised, Paint

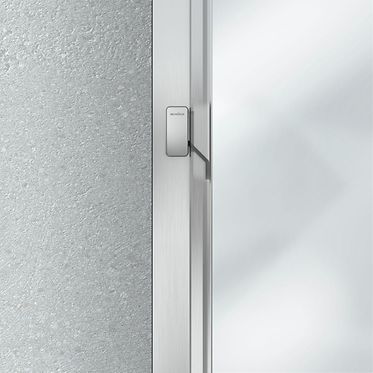

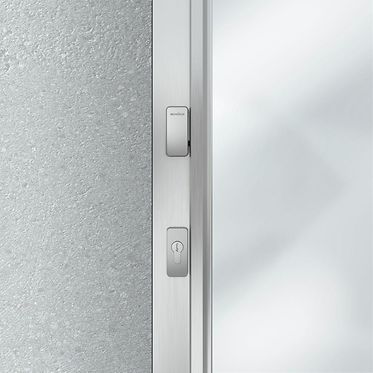

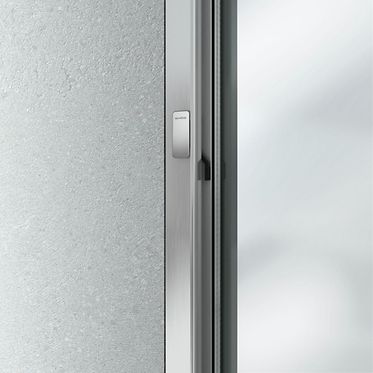

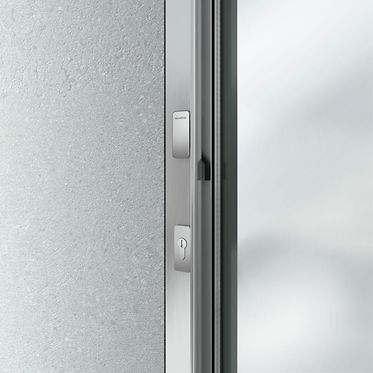

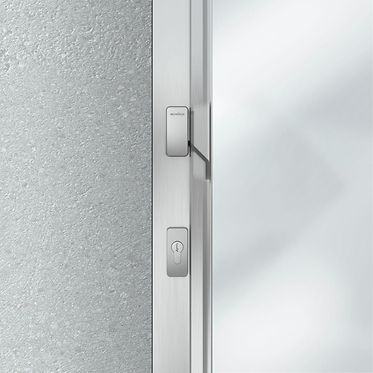

Concealed lockYes
Concealed drive systemNo
Operating forcesClass 1
Operating typemanual
Opening typeType 2A, Type 2A/1, Type 2B, Type 2C, Type 2D, Type 2D/1, Type 2D/1 – 90° A, Type 3E, Type 3E/1, Type 3F, Type 3F – 90° A
Mechanical strengthClass 4
Proof of durabilityClass 3
Air permeabilityClass 3
Wind load resistanceClass C2 / B2
WatertightnessClass 7A
Security glazingYes
Colour-independentYes
Documentation

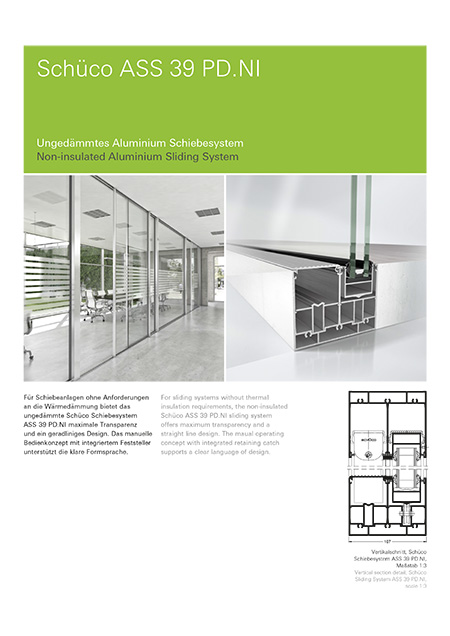

[Ba] Schüco ASS 39 PD.NI
[Ba1] Schüco ASS 39 PD.NI
[Ba2] Schüco ASS 39 PD.NI

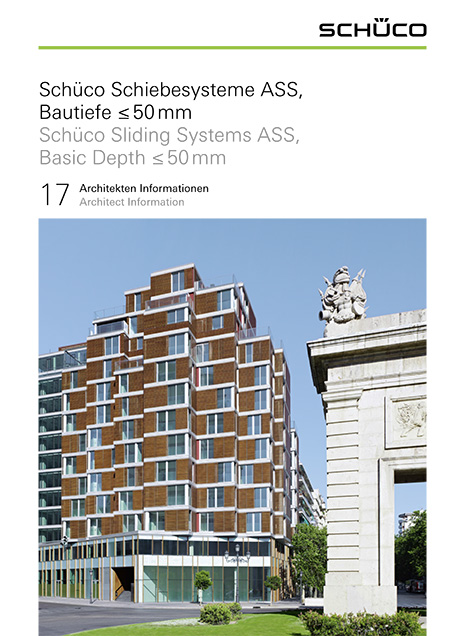

Schüco Sliding Systems ASS, Basic Depth ≤ 50 mm – Architect Information 17
CAD data
Planning principles
Test documents
1-10 of 15
| Document type | Test type | Result | Classification | Document no. / Download |
|---|---|---|---|---|
| Prüfzeugnis | Luftdurchlässigkeit Schlagregendichtheit Windwiderstandsfähigkeit Bedienungskraft |
Klasse 3 Klasse 6A Klasse C2/B2 Klasse 1 |
View onlineDownload (pdf, 1.0 MB) | |
| Prüfzeugnis | Bedienungskraft Dauerlaufprüfung |
Klasse 1 Klasse 3 |
View onlineDownload (pdf, 520.4 KB) | |
| Prüfzeugnis | Luftdurchlässigkeit Schlagregendichtheit Windwiderstandsfähigkeit Bedienungskraft |
Klasse 3 Klasse 5A Klasse C2/B2 Klasse 1 |
View onlineDownload (pdf, 1.0 MB) | |
| Prüfzeugnis | Pendelschlagversuch | Klasse 4 | View onlineDownload (pdf, 453.5 KB) | |
| Prüfzeugnis | Luftdurchlässigkeit Schlagregendichtheit Windwiderstandsfähigkeit Bedienungskraft Vertikallast |
Klasse 3 Klasse 5A Klasse C2/B2 Klasse 1 Klasse 4 |
View onlineDownload (pdf, 173.8 KB) | |
| Prüfzeugnis | Einbruchhemmung | RC 1 N | View onlineDownload (pdf, 161.4 KB) | |
| Prüfbericht | Luftdurchlässigkeit Schlagregendichtheit Schlagregendichtheit Widerstand gegen Windlast |
50 270 570 1820 |
Superior Superior Intermediate |
View onlineDownload (pdf, 1.7 MB) |
| Prüfbericht | Luftdurchlässigkeit Schlagregendichtheit Schlagregendichtheit Widerstand gegen Windlast |
50 60 480 1820 |
Superior Superior Intermediate |
View onlineDownload (pdf, 1.5 MB) |
| Prüfbericht | Luftdurchlässigkeit Schlagregendichtheit Schlagregendichtheit Widerstand gegen Windlast |
50 120 270 1480 |
Superior Superior Intermediate |
View onlineDownload (pdf, 1.4 MB) |
| Prüfzeugnis | Luftdurchlässigkeit Schlagregendichtheit Schlagregendichtheit Widerstand gegen Windlast |
50 60 480 1820 |
Superior Superior Intermediate |
View onlineDownload (pdf, 596.7 KB) |
1-10 of 15
