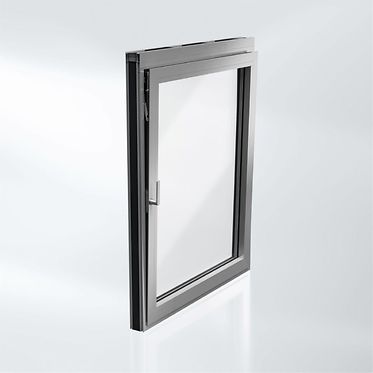

Fabrication benefits
- AC acoustic version of the AWS 90 system – practically identical fabrication to the familiar Schüco AWS modular system
- Single-skin window solution – reduced fabrication time compared to multi-skin box window solutions
- Threshold gasket as centre gasket frame – simple, precise fabrication of the second centre gasket
- Simple fabrication of the centre gasket, as this is mitred

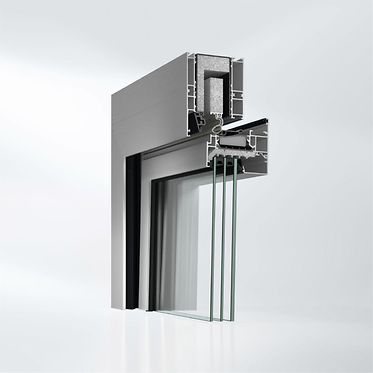

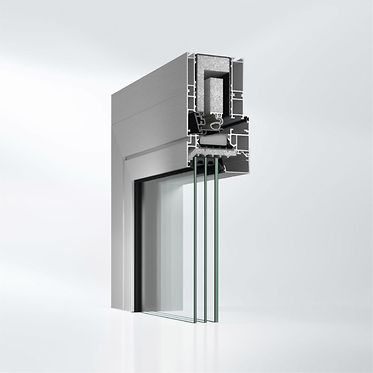

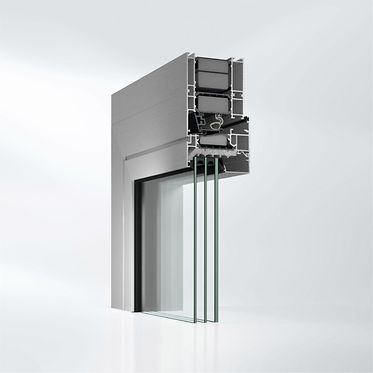

- Simple insertion and fixing of the pre-fabricated ventilation cassettes

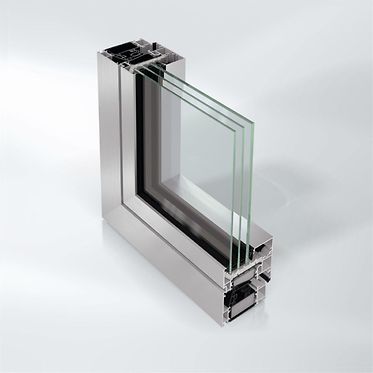

Technical information
System basic depth90 mm
Min. face width99 mm
Uf value of frame (≥)0,9 W/(m²·K)
Max. glass/panel thickness68 mm
Max. vent width1700 mm
Max. vent height2500 mm
Max. sound reduction Rwp47 dB(A)
Air permeabilityClass 4
WatertightnessClass 9A
Burglar resistanceUp to RC2
Wind load resistanceClass C5 / B5
CE markingYes
Total basic depth100 mm
Width of vent frame100 mm
Max. vent weight250 kg
Min.-max. vent height780…2500 mm
Min.-max. vent width470…1700 mm
Outer frame face width64 mm
Vent frame face width43 mm
Max. face width of mullion260 mm
Min.-max. face width of mullion94…260 mm
Min.-max. glass/panel thickness28…68 mm
Area of applicationExternal use, Residential projects, Residential projects, Commercial projects
Shear bondYes
Concealed fittings systemYes
Surface finishesPowder, Anodised, Paint
Glass compositionTriple glazing
Operating forcesClass 1
Barrier-free operating forces in accordance with DIN 18040No
Opening type: manual, inward-openingTurn/tilt, Side-hung
Opening angle180 °
Impact resistanceClass 3
Mechanical strengthClass 4
Proof of durabilityClass 3
Corrosion protection class for fittingsClass 5
Ug value of glass (≤)0.3 W/(m²·K)
Drainage levels3
Security glazingYes
Suitable for safety barrier loadingYes
Colour-independentYes
