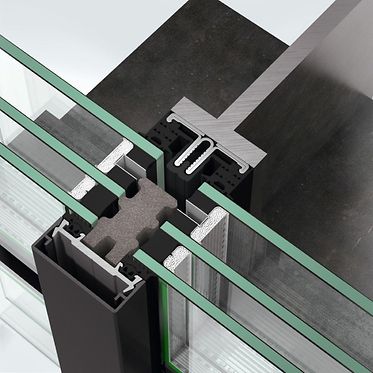

Façade System AOC 50 ST.HI

Highly thermally insulated add-on construction on steel for façades and skylights

Thanks to a ground-breaking isolator design, the Schüco AOC 50 ST.HI (Steel High Insulated) façade system can be used for highly thermally insulated skylights and large-scale vertical façades in a 50 mm system width on steel substructures, with a wide range of design options.

Patented system components enable simple and reliable designs, including load transfer and screw guidance, even with large pane dimensions and triple glazing.

An innovative sealing system ensures maximum thermal insulation in the roof area thanks to an integrated screw guide – with optimised handling during fabrication.

The highly thermally insulated add-on construction on steel combines energy-efficient, aesthetically pleasing construction with efficient fabrication and installation.

หมวดหมู่:

Fabrication benefits

  • Sealing components without use of sealant in the vertical façade for efficient and secure installation
  • Use of building authority-approved, powder-actuated fastener technology on steel substructures: minimised fabrication times compared to welding
  • Patented screw guide: different infill thicknesses can be inserted reliably and efficiently

Technical information

Uf value of frame (≥)1.2 W/(m²·K)
Min. face width50 mm
Max. glass/panel thickness64 mm
Max. weight1500 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityAE 1350
Max. sound reduction Rwp53 dB(A)
WatertightnessRE 1350
Impact resistanceI5/E5
Burglar resistanceUp to RC3
Suitable for safety barrier loadingYes
Max. unit weight1500 kg
Min.-max. face width50 mm
Face width of pressure plate / cover cap profile50 mm
Face width, outside50 mm
Face width, inside50 mm
Face width of mullion50 mm
Face width of frame50 mm
Face width of transom50 mm
Min. glass/panel thickness26 mm
Min.-max. glass/panel thickness26…64 mm
Max. glass/infill weight1500 kg
Installation angle7-105°
Polygon façade angle20°
Skylight construction, min. vert. incline7°
Skylight construction, max. vert. incline105°
Skylight construction, min.-max. vert. incline7…105°
Skylight constructionYes
DrainageYes
Drainage levels3
Wind load resistance2.0/3.0 [kN/m²]
Sun shading attachmentYes
Spandrel safety barriersSurface-mounted, Façade-mounted
CertificatesPassive house certificate
CE markingYes
Passive house compliantYes
RecyclableYes
StandardsDIN EN 1627, DIN EN 13830, General building authority approval
Building authority approvalYes

Documentation

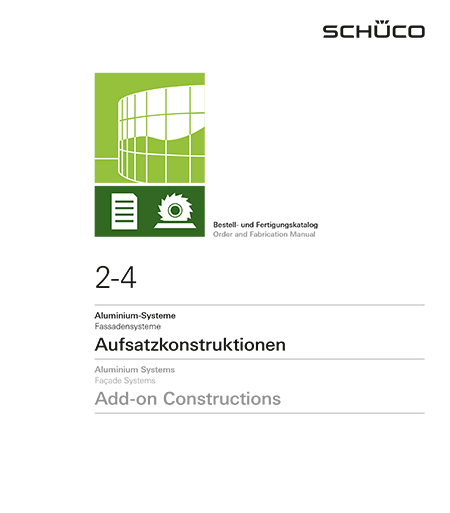

[B] System overview Schüco AOC

View online

[C] Schüco AOC 50

View online

[G] Steel Substructures Vertical façade

View online

[L] Special points

View online

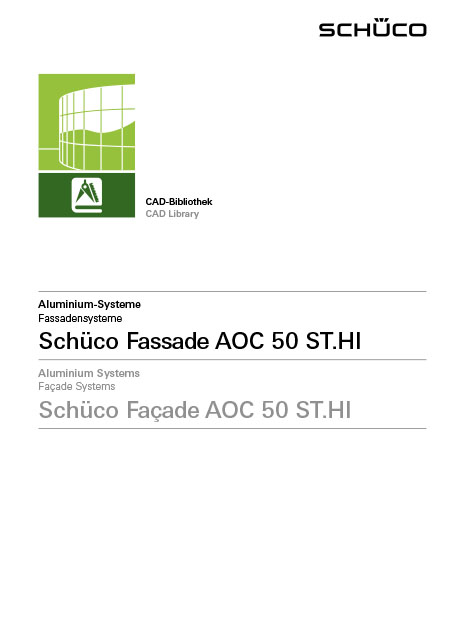

CAD data
