Window System AWS 75 WF.SI+

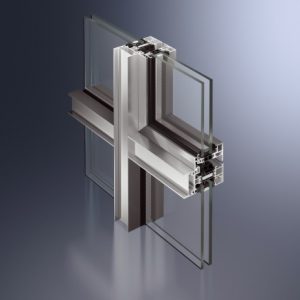

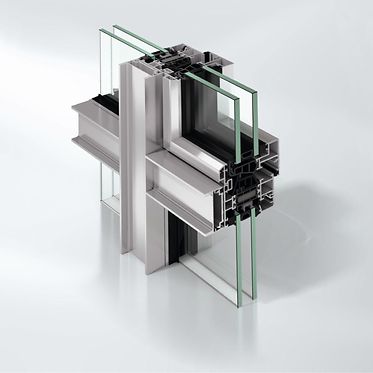

Schüco AWS 75 WF.SI+, highly thermally insulated aluminium window façade system
With a basic depth of 75 mm and the characteristics of a mullion/transom construction with 50 mm face width from the outside.

Design features:
The window vents must be designed as an integrated system (block construction).
There are aluminium cover caps on the outside of the outer frames, mullions and transoms.
For increased structural requirements, profiles with reinforcements on the room side are used.
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge.
The window vent is designed as an isolator.
Thermally insulated insulating bars in the window vent with several hollow chambers form the rebate for the co-extruded, double hollow chamber centre gasket fitted with a foam core.
For improved separation of heat transfer, this must also be designed with a fin.
The glazing must be partially bonded to the insulating bar.
For optimum thermal insulation, plastic glazing beads are used.
The joints of the external glazing retention beads are covered by the glazing gasket, which is designed as a vulcanised gasket frame.

Profile basic depths:
Outer frame, mullion, transom 75 mm
Vent frame, face-fitted 80 mm
Cover cap (mullion) 20 mm
Cover cap (transom) 15 mm

Profile face widths:
Outer frame, bottom 50 mm
Outer frame, side and top 50 mm
Mullion 50 mm
Transom 50 mm
Coupling expansion joint 38 6 38 mm
Vent adapter profile 27 mm
Cover caps 50 mm
